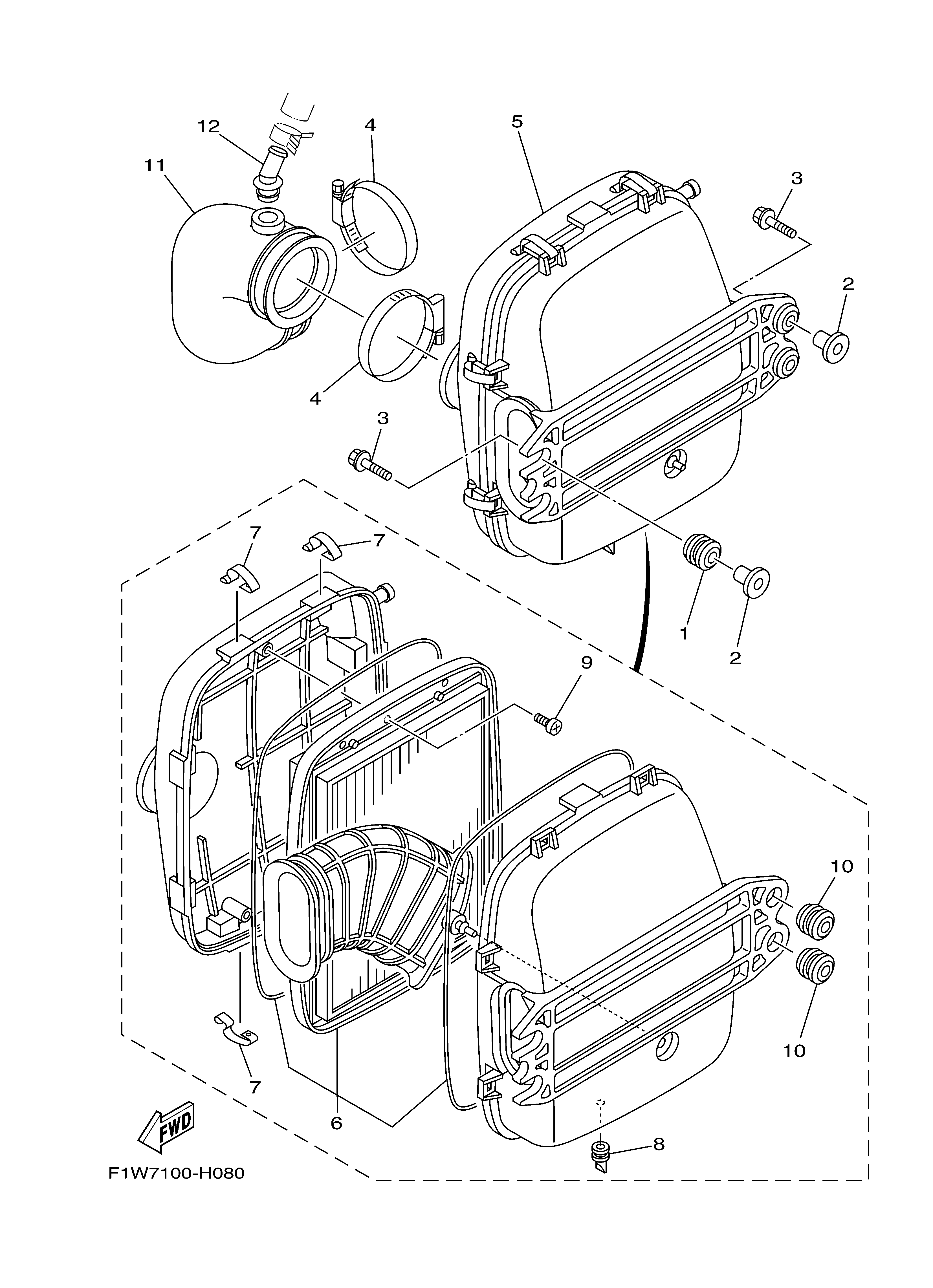

2011 FX CRUISER SHO (FX1800AK) F1WK - INTAKE 3
Roll over image to zoom in Click on image to zoom
2011 FX CRUISER SHO (FX1800AK) F1WK - INTAKE 3

2011 FX CRUISER SHO (FX1800AK) F1WK - INTAKE 3

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 90480-22M15-00 GROMMET 1
2 90387-08M37-00 COLLER (6E5) 2
3 90119-08187-00 BOLT, WITH WASHER 2
4 90460-90M11-00 CLAMP, HOSE 2
5 6S5-E4410-02-00 AIR CLEANER ASSY. 1
6 6S5-E4451-01-00 ELEMENT, AIR CLEAN 1
7 6S5-E4436-00-00 . HOOK 3
8 6S5-G2717-00-00 . RUBBER, SEAL 2 1
9 97780-60116-00 SCREW, PANHEAD TAPPING (J20) 1
10 90480-22801-00 . GROMMET 2
11 6S5-E4419-00-00 PIPE 1
12 6S5-R1142-00-00 CONNECTION 1
