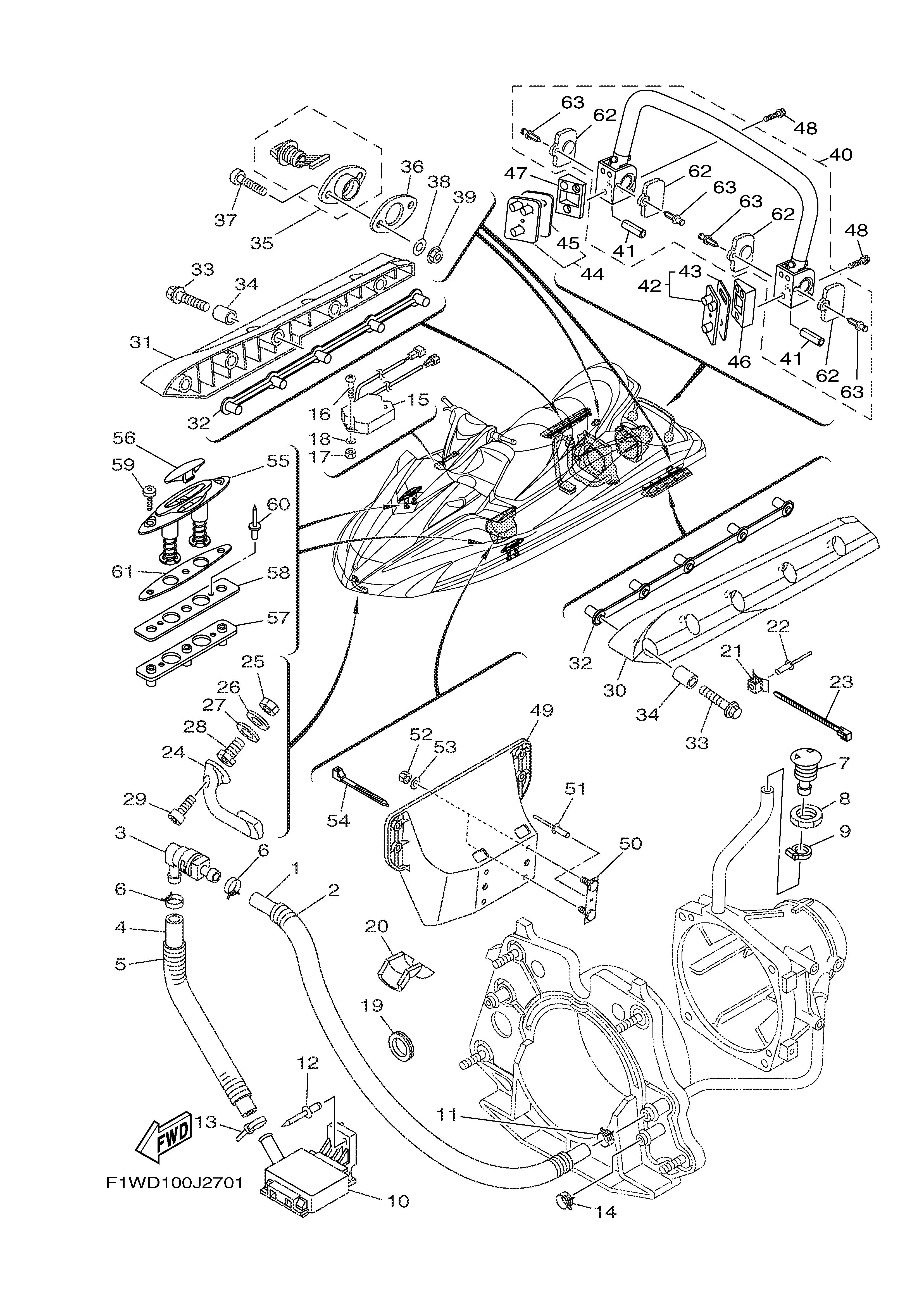

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 90445-20804-00 | HOSE (L860) | 1 |
| 2 | 90446-27M73-00 | HOSE (L700) | 1 |
| 3 | 68N-5112T-00-00 | JOINT, HOSE | 1 |
| 4 | 90445-20800-00 | HOSE (L500) | 1 |
| 5 | 90446-27M55-00 | TUBE (L400) | 1 |
| 6 | 90467-18804-00 | CLIP | 2 |
| 7 | F1W-U269B-00-00 | SPOUT | 1 |
| 8 | EU0-61652-00-00 | NUT | 1 |
| 9 | 90601-118UF-00 | BAND, HOSE 18 | 1 |
| 10 | F1B-U761D-02-00 | STRAINER, BILGE | 1 |
| 11 | 90467-21800-00 | CLIP | 1 |
| 12 | 90267-489U8-00 | RIVET, BLIND | 1 |
| 13 | 90601-200U1-00 | BAND | 1 |
| 14 | 90467-200A0-00 | CLIP | 1 |
| 15 | F1X-U8K22-01-00 | SENSOR, COMPASS | 1 |
| 16 | 9788R-05025-00 | SCREW, PAN HEAD | 1 |
| 17 | 9572R-05300-00 | NUT, FLANGE | 1 |
| 18 | 9299R-05200-00 | WASHER | 1 |
| 19 | 90480-38800-00 | GROMMET | 1 |
| 20 | F1S-U828H-01-00 | TRIM, 1 | 1 |
| 21 | F1W-U828M-00-00 | BASE, CLAMP | 1 |
| 22 | 90267-48802-00 | RIVET, BLIND | 1 |
| 23 | 90464-32801-00 | CLAMP | 1 |
| 24 | F1K-61624-00-00 | BOW EYE 1 | 1 |
| 25 | 99780-12600-00 | NUT.HEX.(COARS) | 1 |
| 26 | 92990-12200-00 | WASHER, PLAIN | 1 |
| 27 | F0X-61637-00-00 | WASHER | 1 |
| 28 | F0X-61652-01-00 | NUT | 1 |
| 29 | 90110-06280-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 30 | F1S-U883N-01-00 | STABILIZER LH | 1 |
| 31 | F1S-U883P-01-00 | STABILIZER RH | 1 |
| 32 | F1X-U883T-02-00 | BRACKET,STABILIZER | 2 |
| 33 | 90105-088F9-00 | BOLT,WASHER BASED | 2 |
| 34 | F2N-U8169-10-00 | SPACER | 2 |
| 35 | F1S-U2280-02-00 | DRAIN PLUG ASSY | 1 |
| 36 | F1S-U2285-01-00 | PACKING, DRAIN | 1 |
| 37 | 9788R-05025-00 | SCREW, PAN HEAD | 1 |
| 38 | 9299R-05200-00 | WASHER | 1 |
| 39 | 9572R-05300-00 | NUT, FLANGE | 1 |
| 40 | F1W-U278A-01-00 | LADDER, STEP ASSY | 1 |
| 41 | F1W-U771H-00-00 | . SLEEVE 1 | 2 |
| 42 | F2H-U278F-01-00 | BRACKET, LADDER LH | 1 |
| 43 | F2H-U278H-00-00 | . PACKING, BRKT 1 | 1 |
| 44 | F2H-U278G-01-00 | BRACKET, LADDER RH | 1 |
| 45 | F2H-U278H-00-00 | . PACKING, BRKT 1 | 1 |
| 46 | F2H-U278K-00-00 | BRACKET 1 | 1 |
| 47 | F2H-U278L-00-00 | BRACKET 2 | 1 |
| 48 | 90119-08844-00 | BOLT, WITH WASHER | 2 |
| 49 | F1W-U8572-01-00 | BRACKET 2 | 1 |
| 50 | F1K-U826C-03-00 | BRACKET | 1 |
| 51 | 90267-48938-00 | RIVET (EU0) | 1 |
| 52 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 53 | 9299R-08200-00 | WASHER | 1 |
| 54 | 90464-32801-00 | CLAMP | 1 |
| 55 | F4G-U163A-02-00 | CLEAT ASSY. | 1 |
| 56 | F1X-U826D-01-00 | COVER | 1 |
| 57 | F1X-U826C-10-00 | BRACKET | 1 |
| 58 | F1X-U2157-00-00 | PACKING | 1 |
| 59 | F1W-U2624-00-00 | BOLT | 1 |
| 60 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 61 | F4G-U2284-10-00 | PACKING | 1 |
| 62 | F2C-U377H-00-00 | . INNER, COVER SIDE 1 | 4 |
| 63 | F2C-U1314-00-00 | . PIN | 4 |
