Description

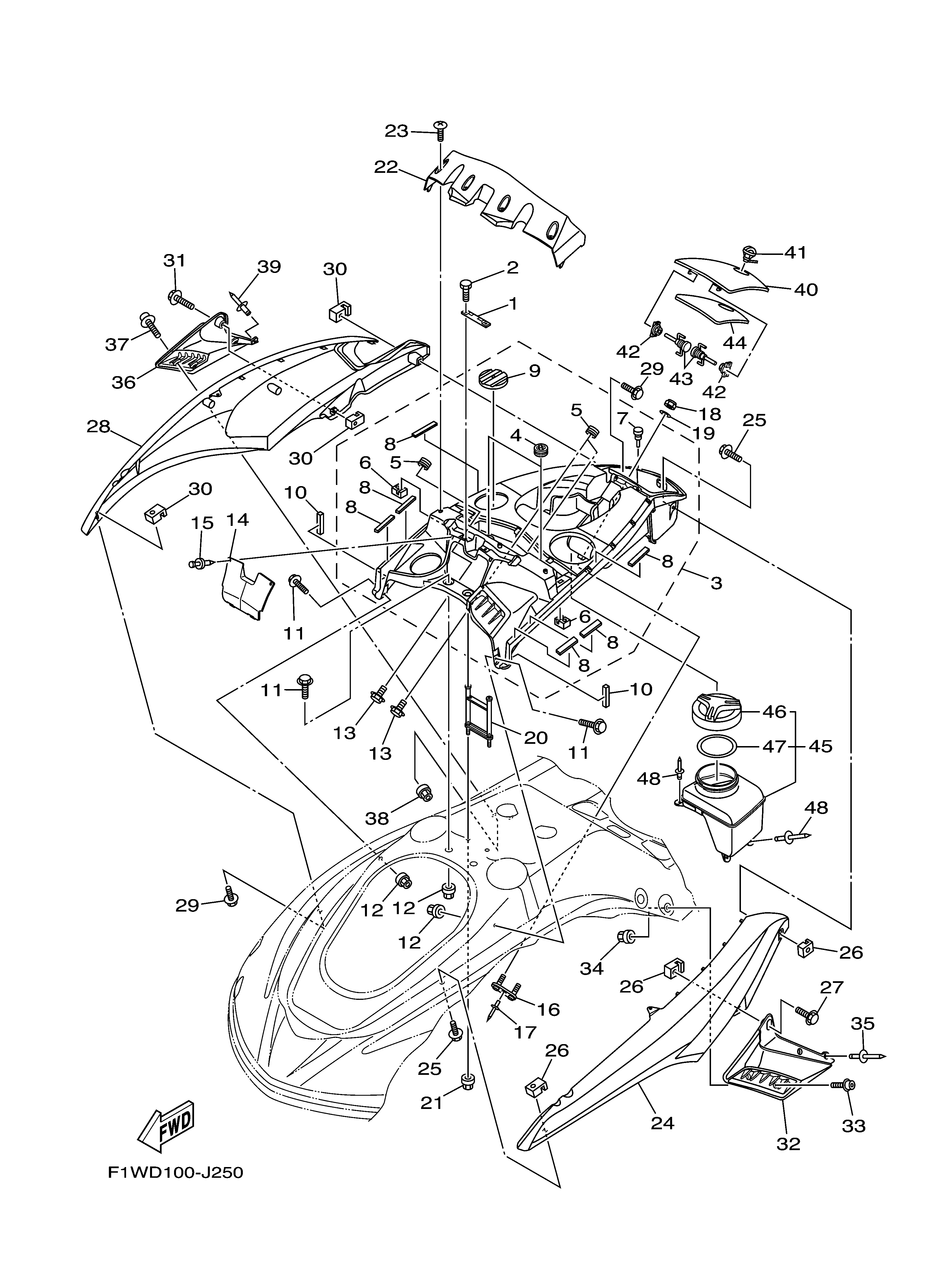

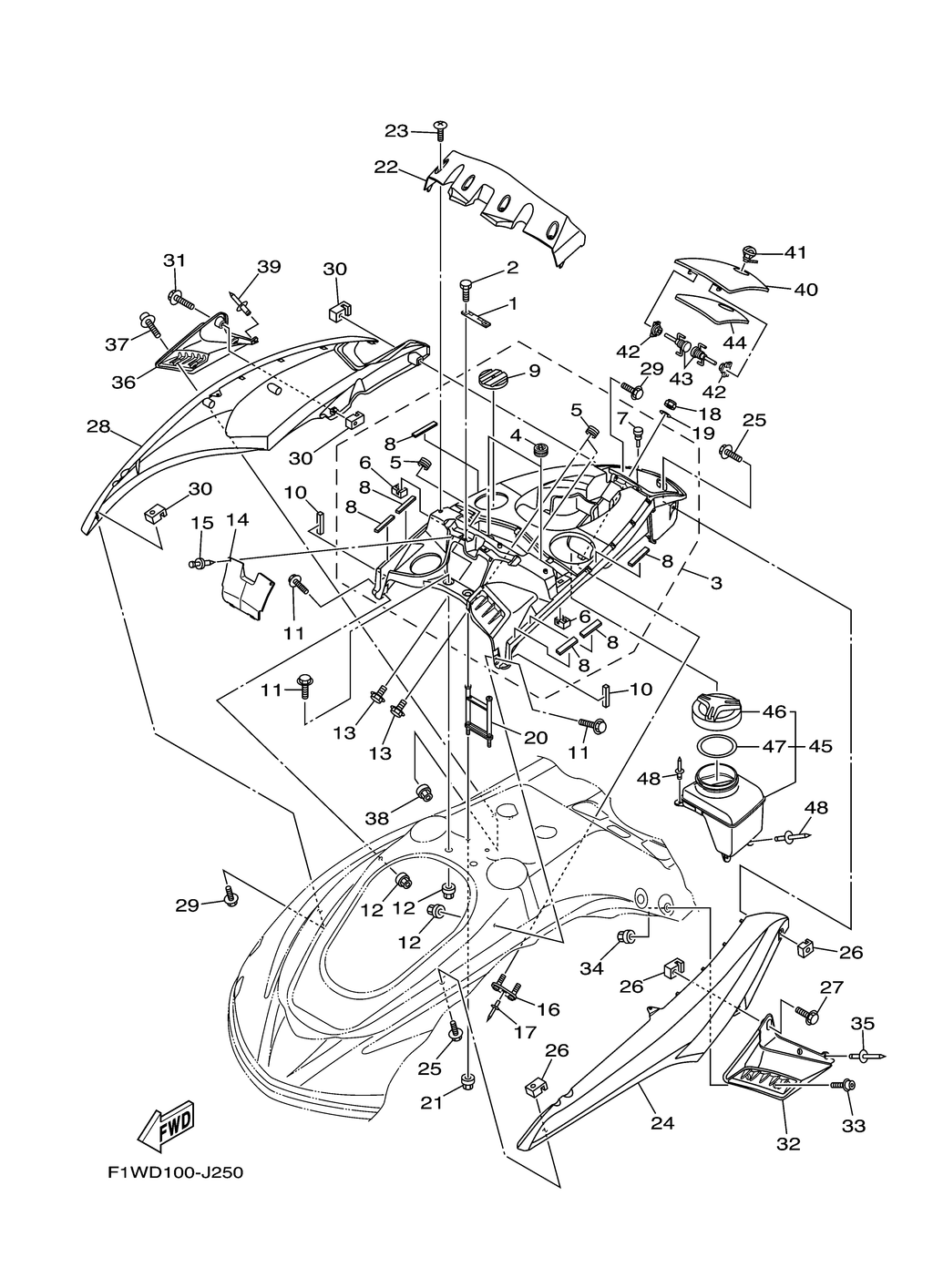

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1W-U517F-00-00 | HOOK,LID LOCK | 1 |
| 2 | 90101-05800-00 | BOLT | 1 |
| 3 | F1W-U5508-02-00 | CENTER COVER ASSY. | 1 |
| 3 | F1W-U5508-22-00 | CENTER COVER ASSY. | 1 |
| 4 | F1X-U828E-01-00 | . DAMPER 1 | 1 |
| 5 | 90480-19800-00 | . GROMMET | 2 |
| 6 | F1X-U517E-01-00 | . NUT | 2 |
| 7 | 90605-502U2-00 | . PLUG | 1 |
| 8 | F0X-U515E-02-00 | DAMPER 2 | 6 |
| 9 | F1X-U3844-01-00 | . MAT | 1 |
| 10 | F1W-U518D-00-00 | PACKING | 2 |
| 11 | 90119-06880-00 | BOLT, WITH WASHER | 3 |
| 12 | F2N-U142L-00-00 | NUT, LOCK | 3 |
| 13 | 90119-05803-00 | BOLT, WITH WASHER | 2 |
| 14 | F1W-U555B-00-00 | SEAL, COVER CENTER | 1 |
| 15 | F1W-U2698-00-00 | RIVET | 1 |
| 16 | F1X-U5372-00-00 | BRACKET | 1 |
| 17 | 90267-48938-00 | RIVET (EU0) | 1 |
| 18 | 9572R-06300-00 | NUT, NYLON | 1 |
| 19 | 9299R-06200-00 | WASHER | 1 |
| 20 | F1W-U555D-02-00 | BRKT., COVER CENTER 1 | 1 |
| 21 | F2N-U142L-00-00 | NUT, LOCK | 1 |
| 22 | F1W-U8262-02-P0 | COVER METER (BLACK METALLIC G) | 1 |
| 22 | F1W-U8262-02-P2 | COVER METER | 1 |
| 23 | 90149-05903-00 | SCREW | 1 |
| 24 | F1W-U377B-60-P1 | COVER,SIDE 1 (DARK PURPLISH BLUE METALLIC 11) | 1 |
| 24 | F1W-U377B-60-P5 | COVER,SIDE 1 (GRAY METALLIC H) | 1 |
| 25 | 90119-06880-00 | BOLT, WITH WASHER | 2 |
| 26 | F1X-U517E-01-00 | NUT | 3 |
| 27 | 90119-06880-00 | BOLT, WITH WASHER | 1 |
| 28 | F1W-U377C-60-P1 | COVER,SIDE 2 (DARK PURPLISH BLUE METALLIC 11) | 1 |
| 28 | F1W-U377C-60-P5 | COVER,SIDE 2 (GRAY METALLIC H) | 1 |
| 29 | 90119-06880-00 | BOLT, WITH WASHER | 2 |
| 30 | F1X-U517E-01-00 | NUT | 3 |
| 31 | 90119-06880-00 | BOLT, WITH WASHER | 1 |
| 32 | F1W-U377F-01-00 | ORNAMENT, SIDE LH | 1 |
| 33 | 90110-06823-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 34 | F2N-U142L-00-00 | NUT, LOCK | 1 |
| 35 | 90267-48807-00 | RIVET, BLIND | 1 |
| 36 | F1W-U377G-01-00 | ORNAMENT, SIDE RH | 1 |
| 37 | 90110-06823-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 38 | F2N-U142L-00-00 | NUT, LOCK | 1 |
| 39 | 90267-48807-00 | RIVET, BLIND | 1 |
| 40 | F1W-U517H-01-00 | LID HATCH | 1 |
| 41 | F1X-62875-01-00 | LOCK | 1 |
| 42 | F1B-60210-00-00 | GEAR ASSY | 2 |
| 43 | F1B-6517R-00-00 | PIN, HINGE | 1 |
| 44 | F1W-U519D-01-00 | PACKING CASE | 1 |
| 45 | F1W-U591A-00-00 | CASE,ASSY 1 | 1 |
| 46 | F1W-U591C-01-00 | CAP,CASE | 1 |
| 47 | F1W-U591D-00-00 | . PACKING,CASE | 1 |
| 48 | 90267-489U6-00 | RIVET, BLIND | 2 |
