Description

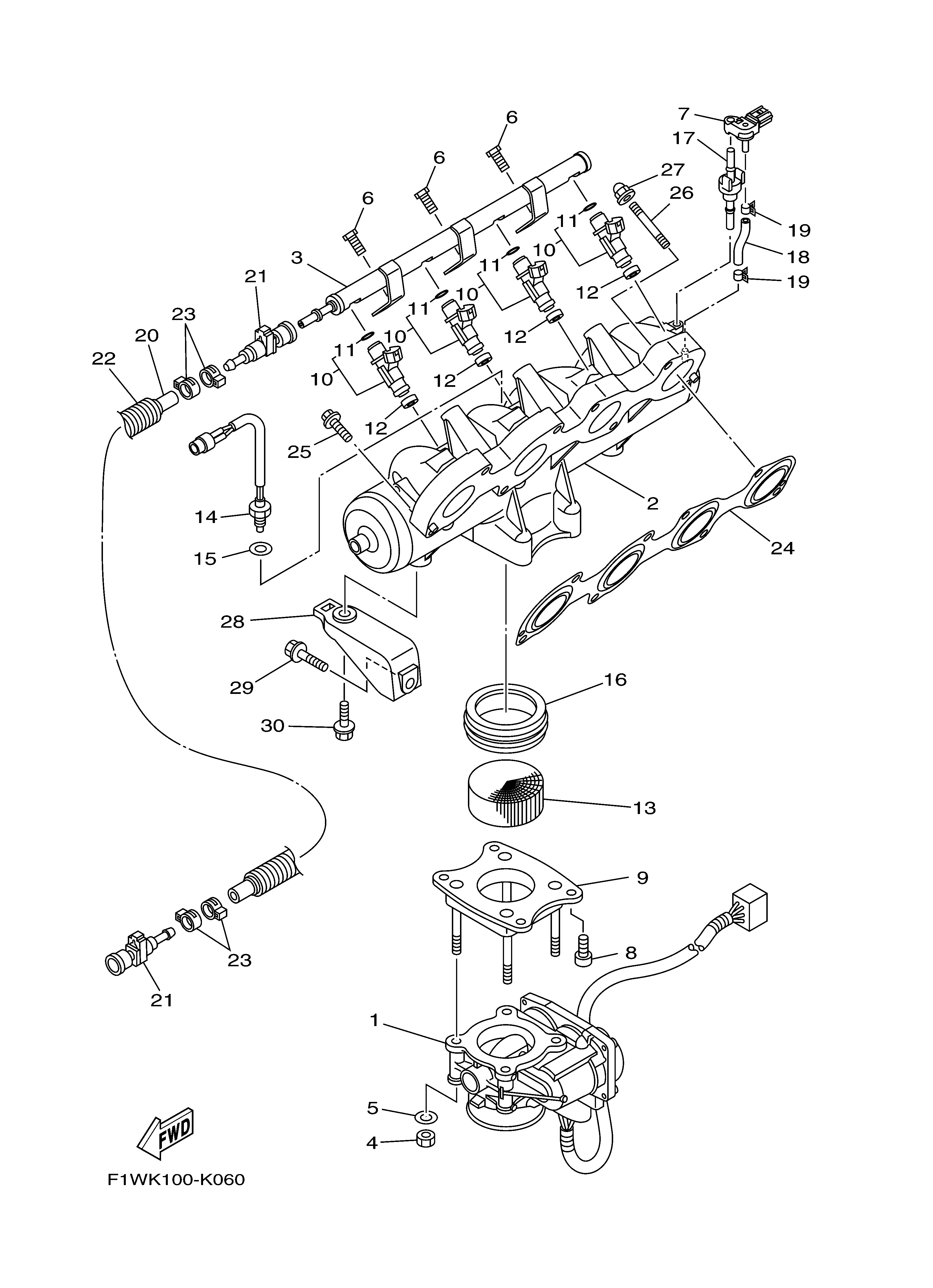

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-13750-12-00 | THROTTLE BODY ASSY | 1 |
| 2 | 6S5-13641-10-00 | MANIFOLD 1 | 1 |
| 3 | 6S5-12880-00-00 | DELIVERY PIPE | 1 |
| 4 | 6P2-13588-00-00 | NUT | 1 |
| 5 | 6P2-13578-00-00 | WASHER | 1 |
| 6 | 63P-14446-00-00 | BOLT | 3 |
| 7 | 6BH-82380-00-00 | . SENSOR, PRESSURE | 1 |
| 8 | 6S5-14496-00-00 | BOLT | 1 |
| 9 | 6S5-14360-12-00 | THROTTLE DAMPER ASSY | 1 |
| 10 | 6S5-13761-00-00 | INJECTOR | 4 |
| 11 | 60E-14147-00-00 | . O-RING | 4 |
| 12 | 8FP-13556-00-00 | . RUBBER, INJECTOR | 4 |
| 13 | 6D3-1444B-01-00 | RIBBON | 1 |
| 14 | 6S5-85886-00-00 | SENSOR, AIR TEMPERATURE | 1 |
| 15 | 6S5-14285-00-00 | . WASHER | 1 |
| 16 | 6S5-14457-00-00 | HOLDER | 1 |
| 17 | 6BH-14445-00-00 | GROMMET | 1 |
| 18 | 5PS-14987-00-00 | HOSE | 1 |
| 19 | 6S5-14159-01-00 | CLIP | 2 |
| 20 | 6S5-14294-09-00 | HOSE | 1 |
| 21 | 6S5-24300-01-00 | FUEL PIPE JOINT | 2 |
| 22 | F3J-U773D-00-00 | TUBE | 1 |
| 23 | 90450-17M17-00 | HOSE CLAMP ASSY | 2 |
| 24 | 6BH-13645-00-00 | . GASKET, MANIFOLD 1 | 1 |
| 25 | 90119-08022-00 | BOLT, WITH WASHER | 1 |
| 26 | 90116-08032-00 | BOLT, STUD | 1 |
| 27 | 90176-08080-00 | NUT, CROWN | 1 |
| 28 | 6S5-14413-00-00 | STAY | 1 |
| 29 | 90119-08043-00 | BOLT, WITH WASHER | 1 |
| 30 | 90119-08099-00 | BOLT, WITH WASHER | 1 |
