Description

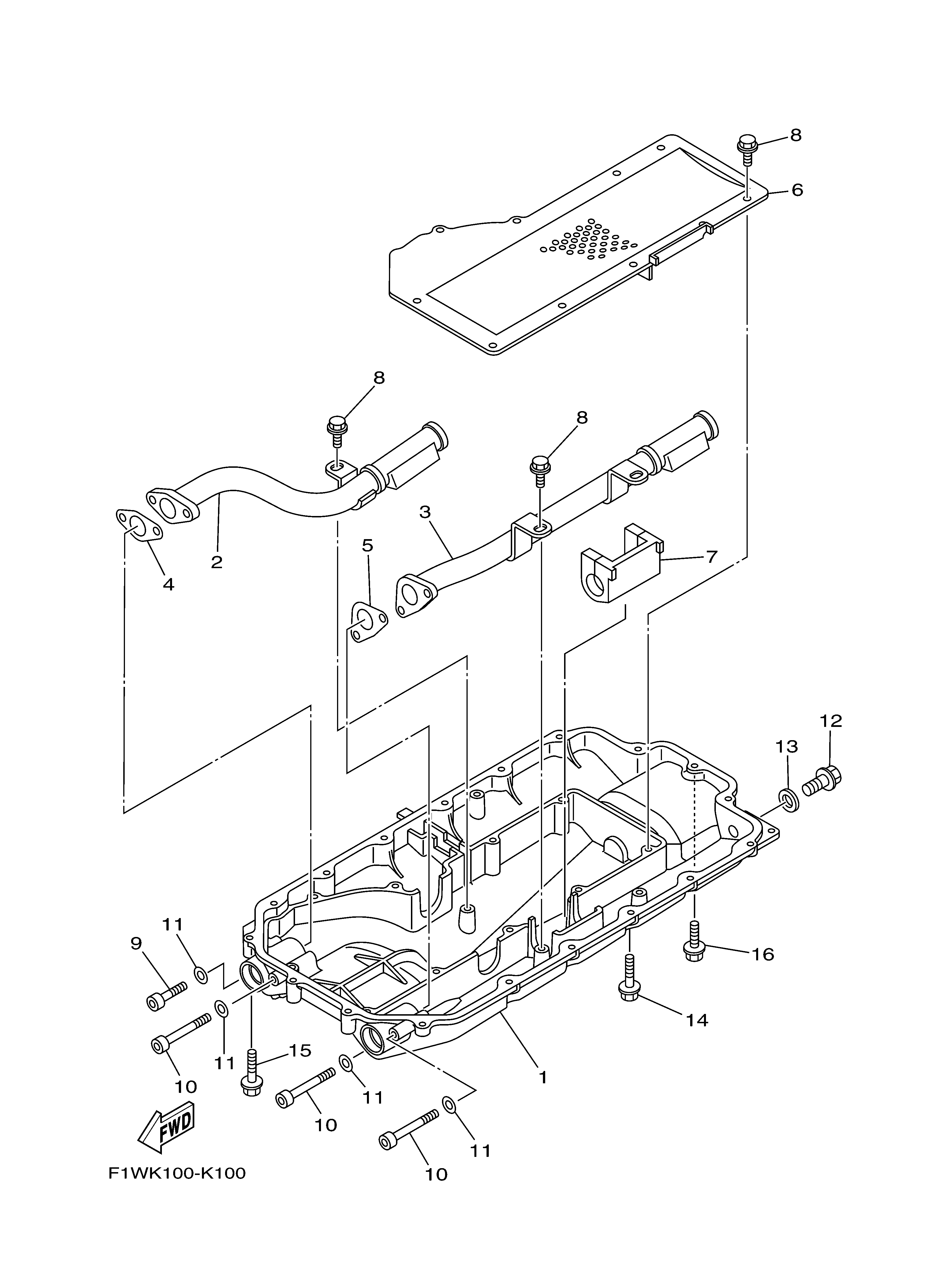

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-1310A-10-94 | PAN, OIL | 1 |
| 2 | 6S5-13405-00-00 | OIL PIPE COMP. 2 | 1 |
| 3 | 6S5-13406-00-00 | OIL PIPE COMP. 2 | 1 |
| 4 | 6S5-13476-00-00 | GASKET | 1 |
| 5 | 6S5-13477-00-00 | GASKET | 1 |
| 6 | 6S5-13317-00-00 | PLATE, BAFFLE | 1 |
| 7 | 6S5-15486-00-00 | GROMMET | 1 |
| 8 | 95817-06014-00 | BOLT, FLANGE | 3 |
| 9 | 91314-06035-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 10 | 91314-06060-00 | BOLT, HEXAGON SOCKET HEAD | 3 |
| 11 | 90201-06028-00 | WASHER, PLATE | 4 |
| 12 | 95814-08016-00 | BOLT, FLANGE | 1 |
| 13 | 90430-08209-00 | . GASKET | 1 |
| 14 | 95024-06035-00 | BOLT, FLANGE (SMALL HEAD) | 1 |
| 15 | 95024-06030-00 | BOLT, FLANGE (SMALL HEAD) | 1 |
| 16 | 95024-06020-00 | BOLT, FLANGE (SMALL HEAD) | 1 |
