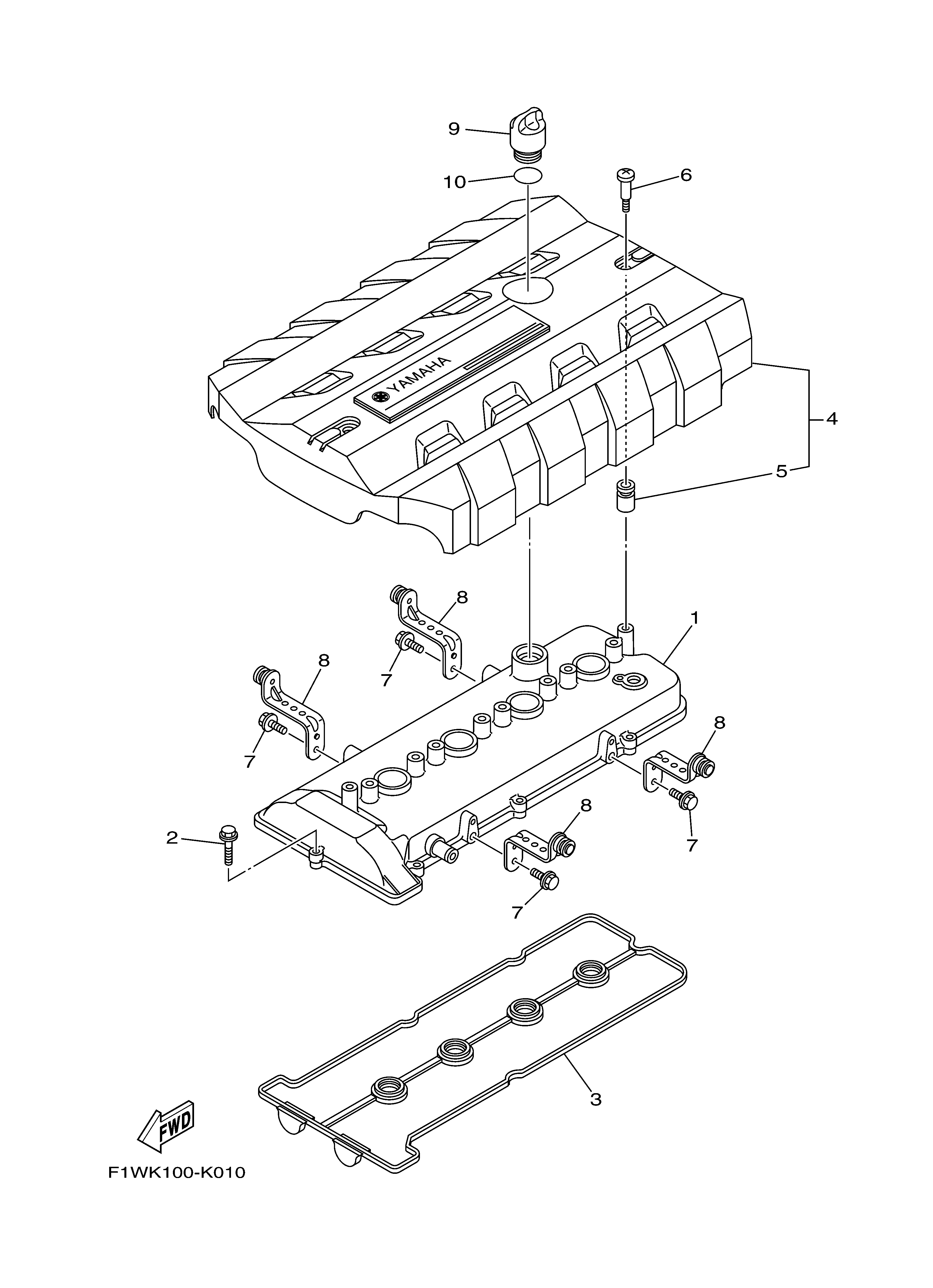

2011 FX CRUISER SHO (FX1800AK) F1WK - CYLINDER 1
Roll over image to zoom in Click on image to zoom
2011 FX CRUISER SHO (FX1800AK) F1WK - CYLINDER 1

2011 FX CRUISER SHO (FX1800AK) F1WK - CYLINDER 1

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 6S5-11191-01-00 COVER, CYLINDER HEAD 1 1
2 90105-06028-00 BOLT, FLANGE 1
3 6BH-11193-00-00 . GASKET, HEAD COVER 1 1
4 6S5-E110M-01-00 COVER ASSY 1 1
5 6S5-E1328-00-00 . GROMMET, ANODE 1
6 6S5-E118E-02-00 BOLT, COVER MOUNTING 1
7 95814-06012-00 BOLT, FLANGE 4
8 6S5-11941-11-00 STAY 4
9 6S5-15363-00-00 PLUG, OIL 1
10 93210-24235-00 O-RING (437) 1
