Description

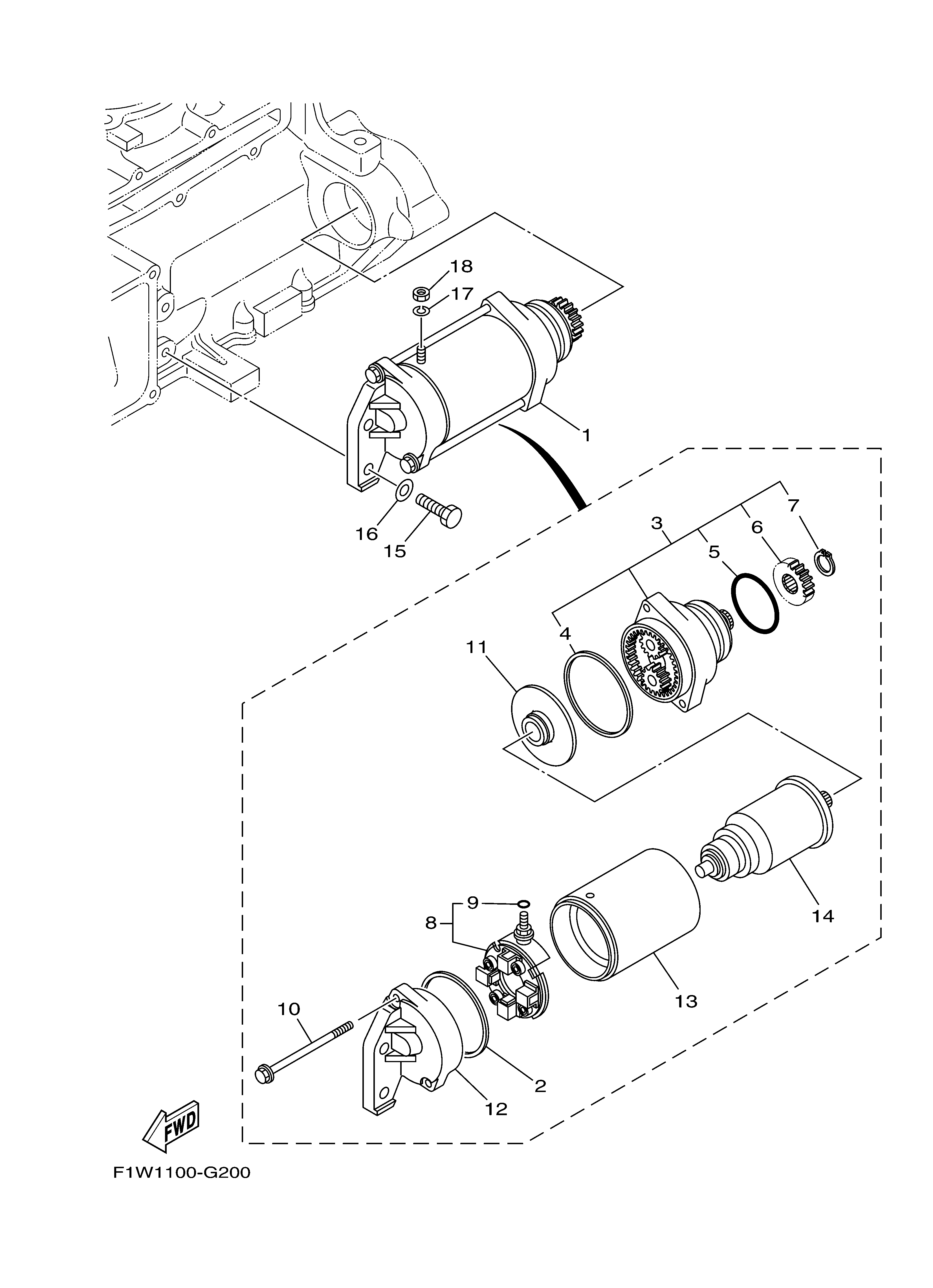

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-81800-00-00 | STARTING MOTOR ASSY | 1 |
| 2 | 35C-81844-00-00 | GASKET | 1 |
| 3 | 6S5-81830-00-00 | . FRONT BRACKET ASSY | 1 |
| 4 | 4G0-81844-00-00 | .. GASKET | 1 |
| 5 | 1J7-81847-60-00 | .. O-RING | 1 |
| 6 | 5EL-15511-00-00 | .. GEAR, STARTING MOTOR | 1 |
| 7 | 99009-12400-00 | CIRCLIP(10Y) | 1 |
| 8 | 6S5-81840-00-00 | . BRUSH HOLDER ASSY | 1 |
| 9 | 3TB-81847-00-00 | .. O-RING | 1 |
| 10 | 6S5-81826-00-00 | . BOLT | 1 |
| 11 | 5EL-81845-00-00 | . PLATE | 1 |
| 12 | 6S5-81820-00-00 | . REAR BRACKET ASSY | 1 |
| 13 | 6S5-81810-00-00 | . STATOR ASSY | 1 |
| 14 | 5A8-81850-10-00 | . ARMATURE ASSY | 1 |
| 15 | 97013-08030-00 | BOLT | 1 |
| 16 | 92990-08600-00 | WASHER, PLAIN (663) | 1 |
| 17 | 92995-06100-00 | WASHER(6A1) | 1 |
| 18 | 95380-06700-00 | NUT | 1 |
