Description

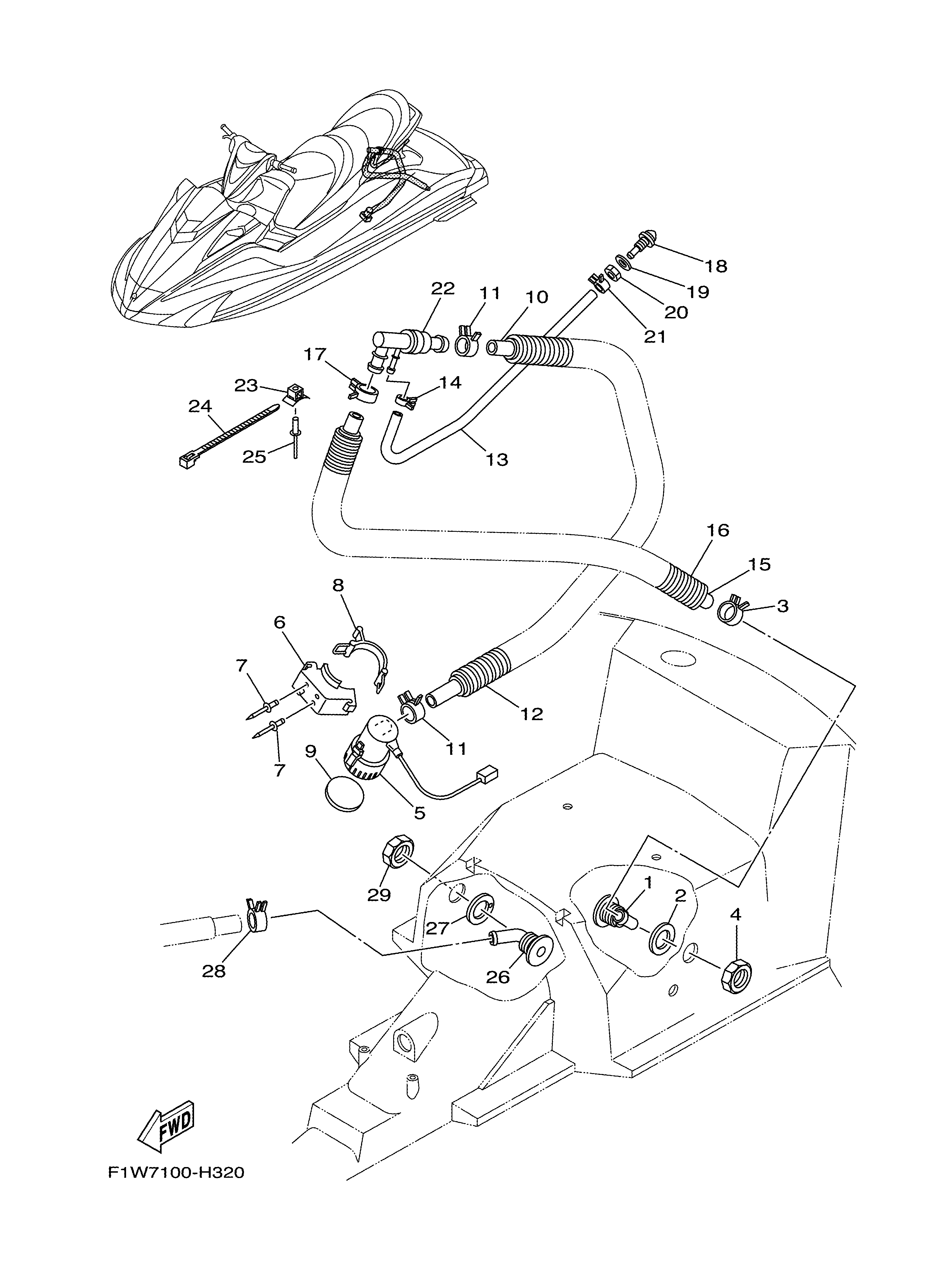

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1W-U224E-00-00 | BODY, DRAIN 3 | 1 |
| 2 | F1S-U7525-01-00 | PACKING | 1 |
| 3 | 90467-26800-00 | CLIP | 1 |
| 4 | F1B-62241-00-00 | DRAIN, COCKPIT | 1 |
| 5 | F1B-U8360-02-00 | BILGE PUMP ASSY | 1 |
| 6 | F1B-U7698-01-00 | BRACKET | 1 |
| 7 | F3J-U516R-00-00 | RIVET, 1 | 2 |
| 8 | GA7-68218-00-00 | BAND, BATTERY | 1 |
| 9 | F1B-U7656-00-00 | PACKING, BILGE | 1 |
| 10 | F1B-U7626-00-00 | HOSE 1 | 1 |
| 11 | 90467-25801-00 | CLIP | 2 |
| 12 | F2T-U773D-10-00 | TUBE | 1 |
| 13 | F1W-U7629-00-00 | HOSE, DRAIN 2 | 1 |
| 14 | 90467-14803-00 | CLIP | 1 |
| 15 | F1B-U7628-00-00 | HOSE, DRAIN 3 | 1 |
| 16 | F2T-U773D-10-00 | TUBE | 1 |
| 17 | 90467-26800-00 | CLIP | 1 |
| 18 | GH7-6753B-00-00 | PILOT,WATER | 1 |
| 19 | 90430-16910-00 | GASKET | 1 |
| 20 | GP7-61652-00-00 | NUT | 1 |
| 21 | 90467-14803-00 | CLIP | 1 |
| 22 | F1S-67620-00-00 | HOSE JOINT | 1 |
| 23 | F1W-U828M-00-00 | BASE, CLAMP | 1 |
| 24 | F2C-U4256-00-00 | CLAMP | 1 |
| 25 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 26 | F1W-U224E-00-00 | BODY, DRAIN 3 | 1 |
| 27 | F1S-U7525-01-00 | PACKING | 1 |
| 28 | 90467-26800-00 | CLIP | 1 |
| 29 | F1B-62241-00-00 | DRAIN, COCKPIT | 1 |
