Description

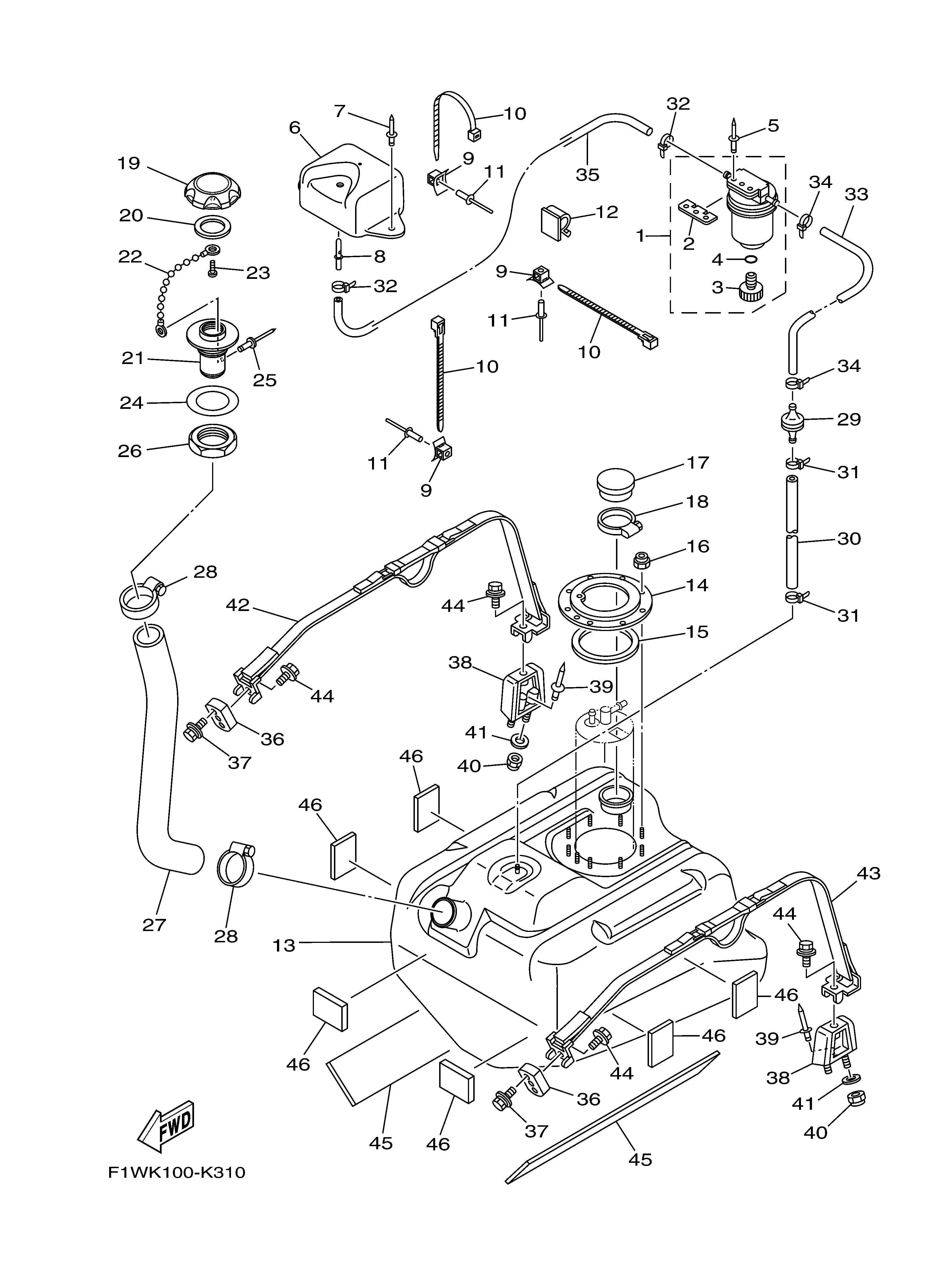

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F2F-6214A-00-00 | FILTER, VENT ASSY | 1 |
| 2 | EW2-62142-00-00 | . PLATE, FILTER | 1 |
| 3 | 70R-24543-00-00 | . PLUG, DRAIN | 1 |
| 4 | 70R-24489-00-00 | . O-RING | 1 |
| 5 | 90267-489U2-00 | RIVET, BLIND | 1 |
| 6 | F1W-U2159-00-00 | SOCKET, VENTILATION | 1 |
| 7 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 8 | F1G-62149-00-00 | PIPE, VENTILATION | 1 |
| 9 | F1W-U828M-00-00 | BASE, CLAMP | 3 |
| 10 | 90464-32801-00 | CLAMP | 3 |
| 11 | 90267-489U6-00 | RIVET, BLIND | 3 |
| 12 | 90464-17800-00 | CLAMP | 1 |
| 13 | F1W-U7711-10-00 | TANK, FUEL | 1 |
| 14 | F1B-U7773-00-00 | RING | 1 |
| 15 | F1B-67747-00-00 | PACKING, SEAL | 1 |
| 16 | 9572R-06300-00 | NUT, NYLON | 1 |
| 17 | FN8-6771K-00-00 | COVER | 1 |
| 18 | 90601-162U5-00 | BAND, HOSE 62 | 1 |
| 19 | F2N-U7831-10-00 | CAP, FUEL FILLER | 1 |
| 20 | GP7-U7832-01-00 | PACKING | 1 |
| 21 | GP7-U7833-11-00 | SOCKET | 1 |
| 22 | GP7-U7835-00-00 | CHAIN BALL | 1 |
| 23 | 90169-049U1-00 | TAPPING SCREW | 1 |
| 24 | GP7-U7834-10-00 | PACKING FUEL FILLER | 1 |
| 25 | 90267-329UR-00 | RIVET, BLIND | 1 |
| 26 | GP7-U783F-00-00 | NUT, FUEL FILLER | 1 |
| 27 | F1W-U7844-00-00 | HOSE | 1 |
| 28 | 90601-155U4-00 | BAND, HOSE 55 | 2 |
| 29 | EU0-67767-31-00 | CHECK VALVE | 1 |
| 30 | F2H-U785H-00-00 | HOSE, AIR VENT 3 | 1 |
| 31 | 90465-10098-00 | CLAMP | 2 |
| 32 | 90465-10098-00 | CLAMP | 2 |
| 33 | F2C-U785G-00-00 | HOSE, AIR VENT | 1 |
| 34 | 90465-10098-00 | CLAMP | 2 |
| 35 | F0D-U7856-10-00 | HOSE, AIR VENT 3 | 1 |
| 36 | F1X-U2873-00-00 | NUT, SPECIAL | 2 |
| 37 | 90119-06830-00 | BOLT, WITH WASHER | 2 |
| 38 | F1B-6774J-00-00 | BRKT, BAND | 2 |
| 39 | 90267-489UE-00 | RIVET, BLIND | 2 |
| 40 | 9572R-06300-00 | NUT, NYLON | 2 |
| 41 | 9299R-06200-00 | WASHER | 2 |
| 42 | F1B-67743-03-00 | BELT, TANK 1 | 1 |
| 43 | F1W-67743-00-00 | BELT, TANK 1 | 1 |
| 44 | 90119-08800-00 | BOLT, WITH WASHER | 4 |
| 45 | F1W-U759B-00-00 | MAT 1 | 2 |
| 46 | F1W-U759C-01-00 | MAT 2 | 6 |
