Description

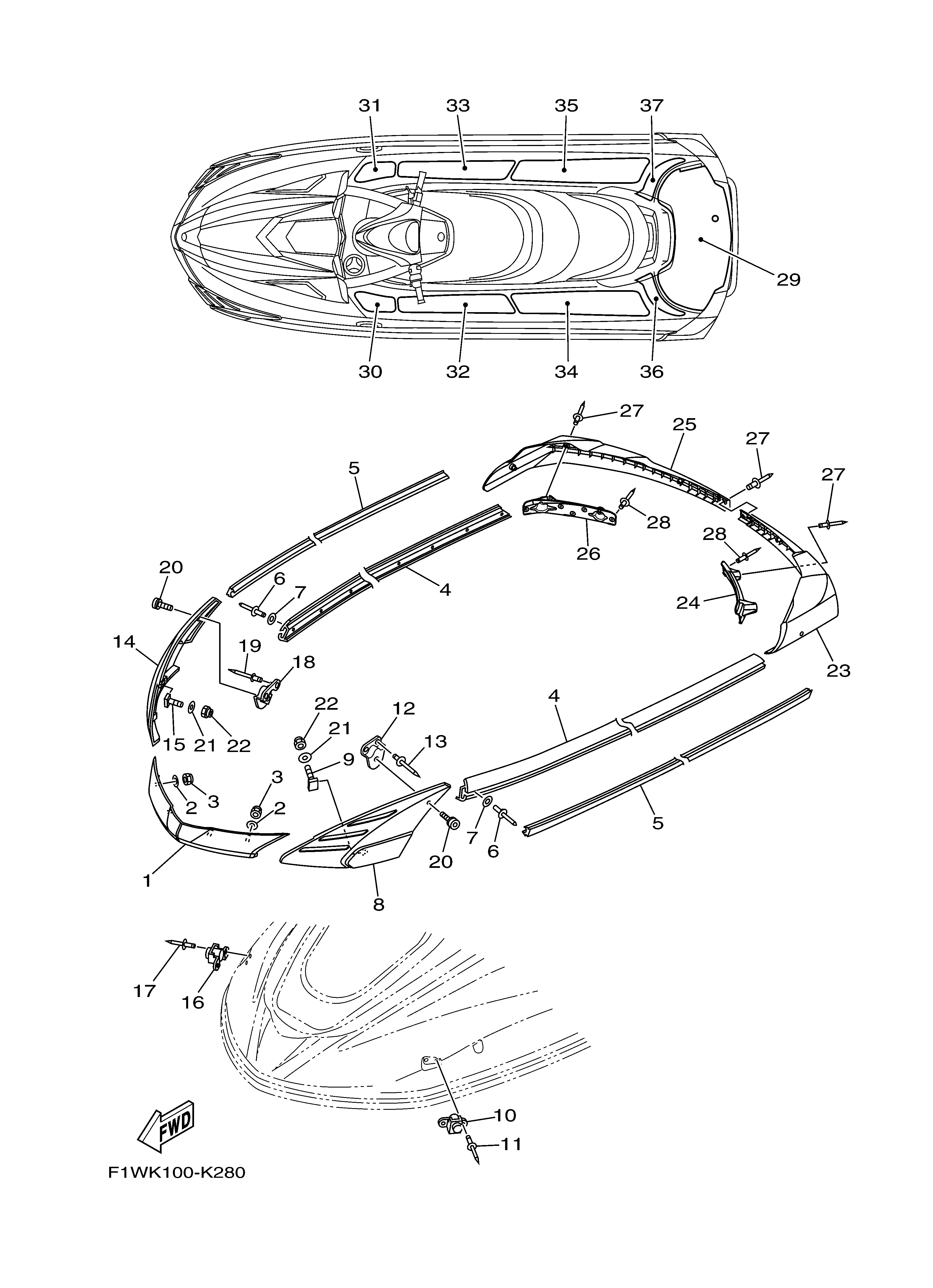

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1W-U2501-01-00 | BOW GUNWALE COMP. | 1 |
| 1 | F1W-U2501-11-00 | BOW GUNWALE COMP. | 1 |
| 2 | 9299R-06200-00 | WASHER | 2 |
| 3 | 9572R-06300-00 | NUT, NYLON | 2 |
| 4 | F1B-U2512-00-00 | GUNWALE, SIDE | 2 |
| 4 | F1B-U2512-20-00 | GUNWALE, SIDE | 2 |
| 5 | F1B-U2519-10-00 | INNER,GUNWALE | 2 |
| 6 | 90267-489U8-00 | RIVET, BLIND | 2 |
| 7 | 9299R-05200-00 | WASHER | 2 |
| 8 | F1W-U252E-02-00 | JOINT,GUNWALE LH | 1 |
| 8 | F1W-U252E-11-00 | JOINT,GUNWALE LH | 1 |
| 9 | F7K-U491K-00-00 | BOLT, SPECIAL | 1 |
| 10 | F1W-U250B-00-00 | GROMMET ASSY | 1 |
| 11 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 12 | F1W-U4949-00-00 | BRACKET | 1 |
| 13 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 14 | F1W-U252F-02-00 | JOINT,GUNWALE RH | 1 |
| 14 | F1W-U252F-11-00 | JOINT,GUNWALE RH | 1 |
| 15 | F7K-U491K-00-00 | BOLT, SPECIAL | 1 |
| 16 | F1W-U250B-00-00 | GROMMET ASSY | 1 |
| 17 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 18 | F1W-U4949-00-00 | BRACKET | 1 |
| 19 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 20 | 90111-06115-00 | BOLT,HEX. SOCKET BUTTON | 2 |
| 21 | 9299R-06200-00 | WASHER | 2 |
| 22 | 9572R-06300-00 | NUT, NYLON | 2 |
| 23 | F1W-U251D-02-00 | GUNWALE, STERN 1 | 1 |
| 23 | F1W-U251D-11-00 | GUNWALE, STERN 1 | 1 |
| 24 | F1W-U251L-01-00 | BRACKET, GUNWALE 1 | 1 |
| 25 | F1W-U251E-02-00 | GUNWALE, STERN 2 | 1 |
| 25 | F1W-U251E-11-00 | GUNWALE, STERN 2 | 1 |
| 26 | F1W-U251M-01-00 | BRACKET, GUNWALE 2 | 1 |
| 27 | 90267-48825-00 | RIVET, BLIND | 3 |
| 28 | 90267-489U8-00 | RIVET, BLIND | 2 |
| 29 | F1W-U3581-00-00 | MAT, UPPER | 1 |
| 29 | F1W-U3581-10-00 | MAT, UPPER | 1 |
| 30 | F1W-U351H-00-00 | MAT, STEP 1 | 1 |
| 30 | F1W-U351H-10-00 | MAT, STEP 1 | 1 |
| 31 | F1W-U351J-00-00 | MAT, STEP 2 | 1 |
| 31 | F1W-U351J-10-00 | MAT, STEP 2 | 1 |
| 32 | F1W-U351K-00-00 | MAT, STEP 3 | 1 |
| 32 | F1W-U351K-10-00 | MAT, STEP 3 | 1 |
| 33 | F1W-U351M-00-00 | MAT, STEP 4 | 1 |
| 33 | F1W-U351M-10-00 | MAT, STEP 4 | 1 |
| 34 | F1W-U351N-00-00 | MAT, STEP 5 | 1 |
| 34 | F1W-U351N-10-00 | MAT, STEP 5 | 1 |
| 35 | F1W-U351P-00-00 | MAT, STEP 6 | 1 |
| 35 | F1W-U351P-10-00 | MAT, STEP 6 | 1 |
| 36 | F1W-U351R-00-00 | MAT, STEP 7 | 1 |
| 36 | F1W-U351R-10-00 | MAT, STEP 7 | 1 |
| 37 | F1W-U351S-00-00 | MAT, STEP 8 | 1 |
| 37 | F1W-U351S-10-00 | MAT, STEP 8 | 1 |
