Description

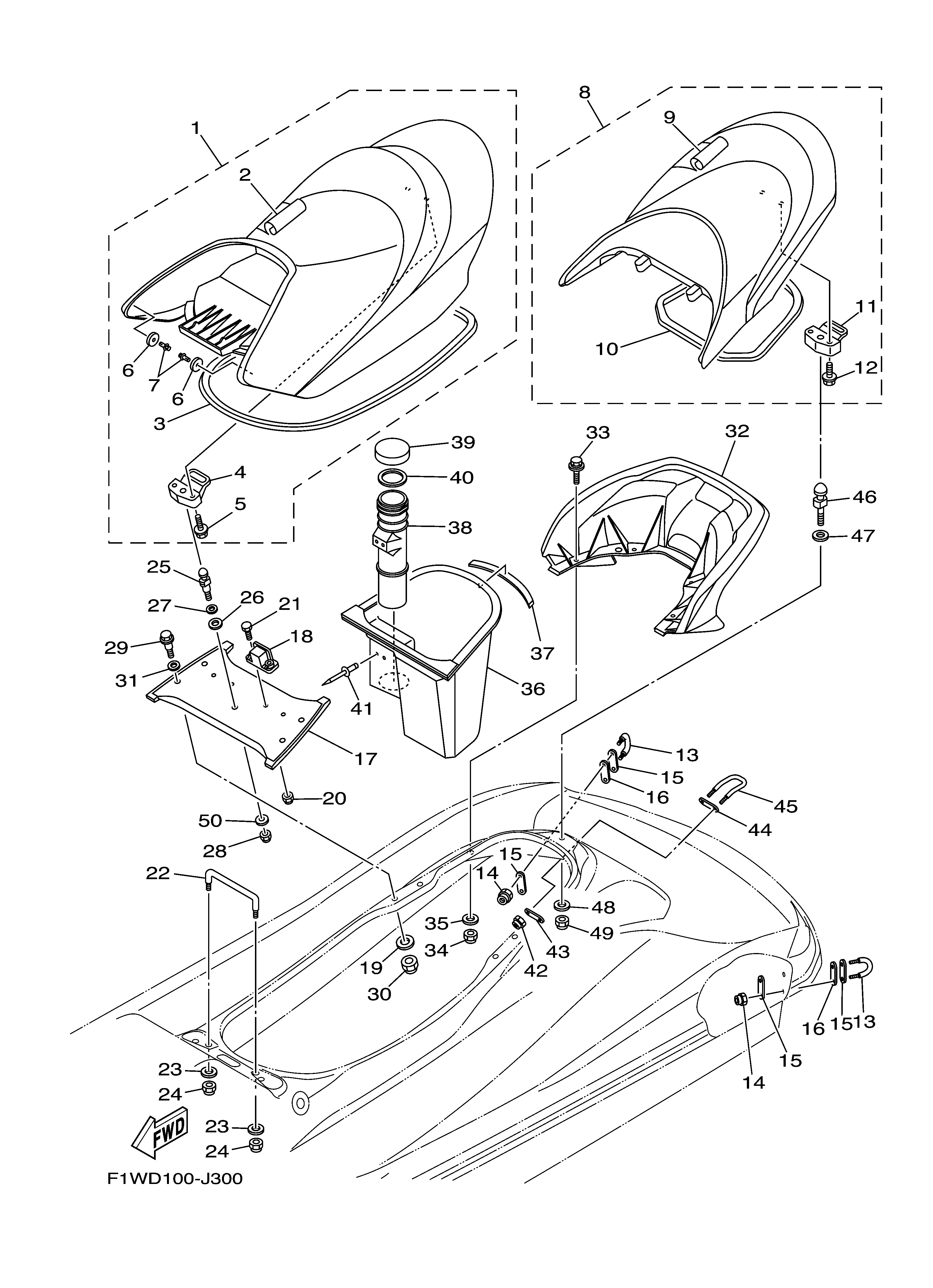

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1W-U371A-12-00 | DOUBLE SEAT ASSY | 1 |
| 1 | F1W-U371A-22-00 | DOUBLE SEAT ASSY | 1 |
| 2 | F1W-U371B-12-00 | . COVER, SEAT 1 | 1 |
| 2 | F1W-U371B-21-00 | . COVER, SEAT 1 | 1 |
| 3 | F1W-U2664-01-00 | . PACKING | 1 |
| 4 | F1B-U3850-02-00 | . SEAT LOCK ASSY | 1 |
| 5 | 90119-06808-00 | BOLT, WITH WASHER | 1 |
| 6 | F1W-U251C-00-00 | . BUMPER, SIDE | 2 |
| 7 | 90267-48834-00 | . RIVET, BLIND | 1 |
| 8 | F1W-U372A-13-00 | SINGLE SEAT ASSY | 1 |
| 8 | F1W-U372A-22-00 | SINGLE SEAT ASSY | 1 |
| 9 | F1W-U372B-12-00 | . COVER, SEAT | 1 |
| 9 | F1W-U372B-21-00 | . COVER, SEAT | 1 |
| 10 | F1W-U266D-00-00 | . PACKING 5 | 1 |
| 11 | F1B-U3850-02-00 | . SEAT LOCK ASSY | 1 |
| 12 | 90119-06808-00 | BOLT, WITH WASHER | 1 |
| 13 | F2N-U1628-00-00 | STERN EYE | 2 |
| 14 | 95780-08300-00 | NUT, NYLON (6J8) | 2 |
| 15 | GP7-U4953-10-00 | PLATE A | 4 |
| 16 | F1B-U1653-03-00 | PACKING | 2 |
| 17 | F1B-U8952-01-00 | BEAM, DECK 1 | 1 |
| 18 | GU2-6378D-02-00 | STAY,SEAT 2 | 1 |
| 19 | 9299R-08200-00 | WASHER | 1 |
| 20 | 9572R-06300-00 | NUT, NYLON | 1 |
| 21 | 90101-069U0-00 | BOLT | 1 |
| 22 | F0X-6378C-00-00 | STAY, SEAT 1 | 1 |
| 23 | 90201-099U3-00 | WASHER, PLATE | 2 |
| 24 | 95780-08300-00 | NUT, NYLON (6J8) | 2 |
| 25 | F1B-U3774-00-00 | PIN | 1 |
| 26 | F0X-6375E-00-00 | PACKING 1 | 1 |
| 27 | 92990-12200-00 | WASHER, PLAIN | 1 |
| 28 | 9572R-10300-00 | . NUT, NYLON | 1 |
| 29 | F1B-U2624-00-00 | BOLT | 1 |
| 30 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 31 | 9299R-10200-00 | WASHER | 1 |
| 32 | F1W-U271B-01-00 | GRIP, HAND | 1 |
| 33 | 90119-08907-00 | BOLT WITH WASHER (EU0) | 1 |
| 34 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 35 | 9299R-08200-00 | WASHER | 1 |
| 36 | F1B-U4742-01-00 | LOCKER, UNDER 2 | 1 |
| 37 | F0X-U266E-01-00 | PACKING,6 | 1 |
| 38 | F0X-U5983-01-00 | BOX, FIRE EXTINGUISHER | 1 |
| 39 | EW2-U5912-01-00 | CAP, CASE | 1 |
| 40 | EW2-U5913-01-00 | PACKING, CASE | 1 |
| 41 | F3J-U516R-00-00 | RIVET, 1 | 1 |
| 42 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 43 | GP7-U4953-10-00 | PLATE A | 1 |
| 44 | GP7-U4953-10-00 | PLATE A | 1 |
| 45 | F1B-U1629-00-00 | SKI TOWS | 1 |
| 46 | GH1-U3774-00-00 | . PIN | 1 |
| 47 | 90201-109U6-00 | WASHER, PLATE | 1 |
| 48 | 9299R-10200-00 | WASHER | 1 |
| 49 | 9572R-10300-00 | . NUT, NYLON | 1 |
| 50 | 9299R-10200-00 | WASHER | 1 |
