Description

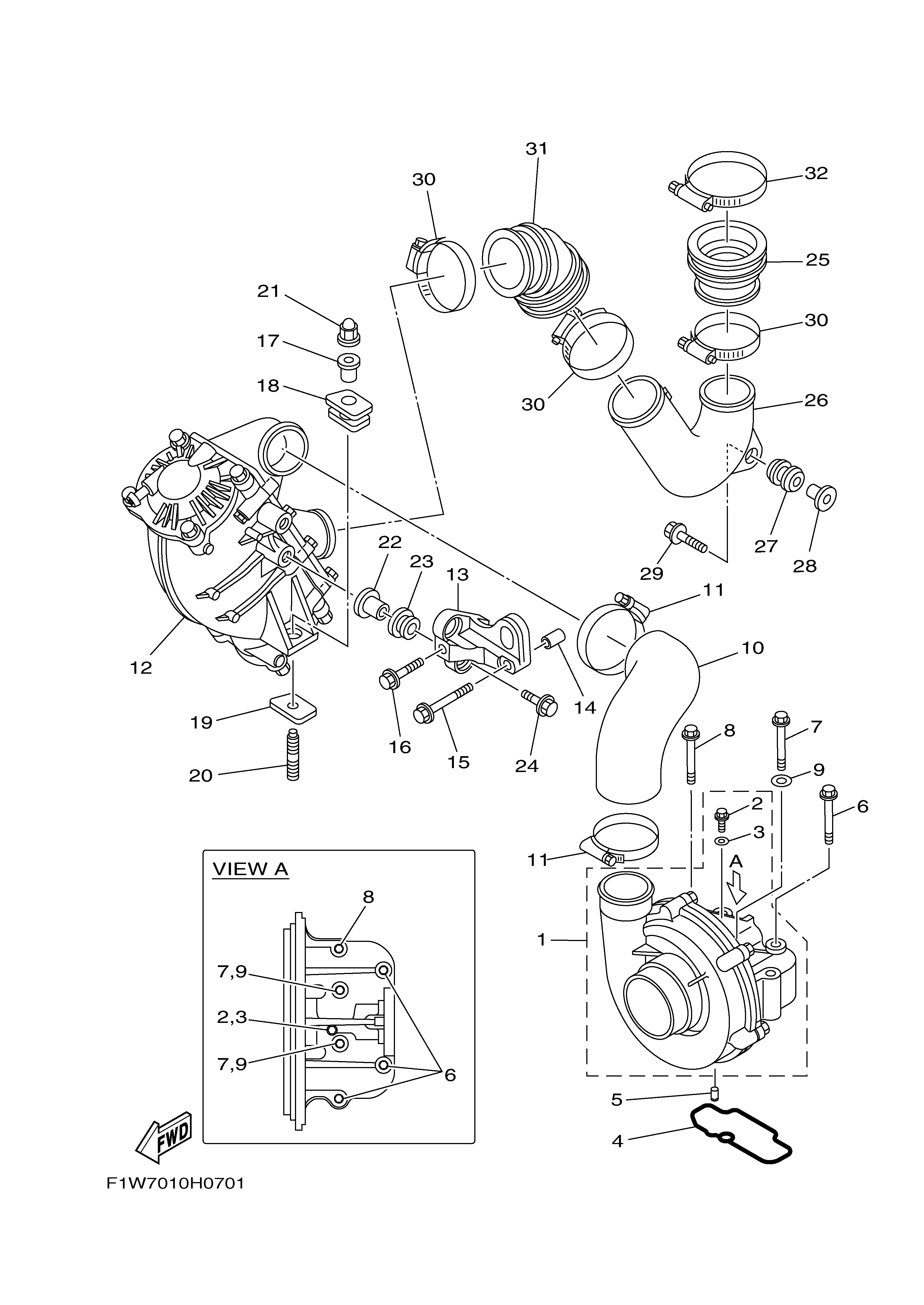

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-141A0-08-00 | SUPER CHARGER ASSY | 1 |
| 2 | 90105-05020-00 | . BOLT, FLANGE | 2 |
| 3 | 6S5-14199-00-00 | . GASKET | 2 |
| 4 | 6S5-1416A-00-00 | . O-RING | 1 |
| 5 | 93604-10M03-00 | PIN, DOWEL | 1 |
| 6 | 95814-08065-00 | BOLT, FLANGE | 2 |
| 7 | 95814-06065-00 | BOLT, FLANGE | 3 |
| 8 | 90105-08188-00 | BOLT, FLANGE | 2 |
| 9 | 90201-06028-00 | WASHER, PLATE | 3 |
| 10 | 6S5-14349-00-00 | PIPE | 1 |
| 11 | 90450-75003-00 | HOSE CLAMP ASSY | 2 |
| 12 | 6S5-13670-10-00 | AIR COOLER ASSY. | 1 |
| 13 | 6S5-13691-00-94 | BRACKET, AIR COOLER | 1 |
| 14 | 99590-14016-00 | PIN, DOWEL | 1 |
| 15 | 90119-10047-00 | BOLT, WITH WASHER | 1 |
| 16 | 90119-10046-00 | BOLT, WITH WASHER | 1 |
| 17 | 90387-11007-00 | COLLAR | 1 |
| 18 | 6S5-14435-01-00 | GROMMET | 1 |
| 19 | 6S5-14243-01-00 | PLATE | 1 |
| 20 | 90116-10044-00 | BOLT, STUD | 1 |
| 21 | 90176-10001-00 | NUT, CROWN | 1 |
| 22 | 90387-11008-00 | COLLAR | 1 |
| 23 | 90480-21M63-00 | GROMMET | 1 |
| 24 | 90119-10011-00 | BOLT, WITH WASHER | 1 |
| 25 | 6S5-13652-00-00 | PIPE, INTAKE | 1 |
| 26 | 6S5-13651-00-00 | PIPE, BOOST | 1 |
| 27 | 90480-22M15-00 | GROMMET | 1 |
| 28 | 90387-08M37-00 | COLLER (6E5) | 1 |
| 29 | 90119-08187-00 | BOLT, WITH WASHER | 1 |
| 30 | 90450-70005-00 | HOSE CLAMP ASSY | 3 |
| 31 | 6S5-14148-00-00 | PIPE | 1 |
| 32 | 90450-70M13-00 | HOSE CLAMP ASSY | 1 |
