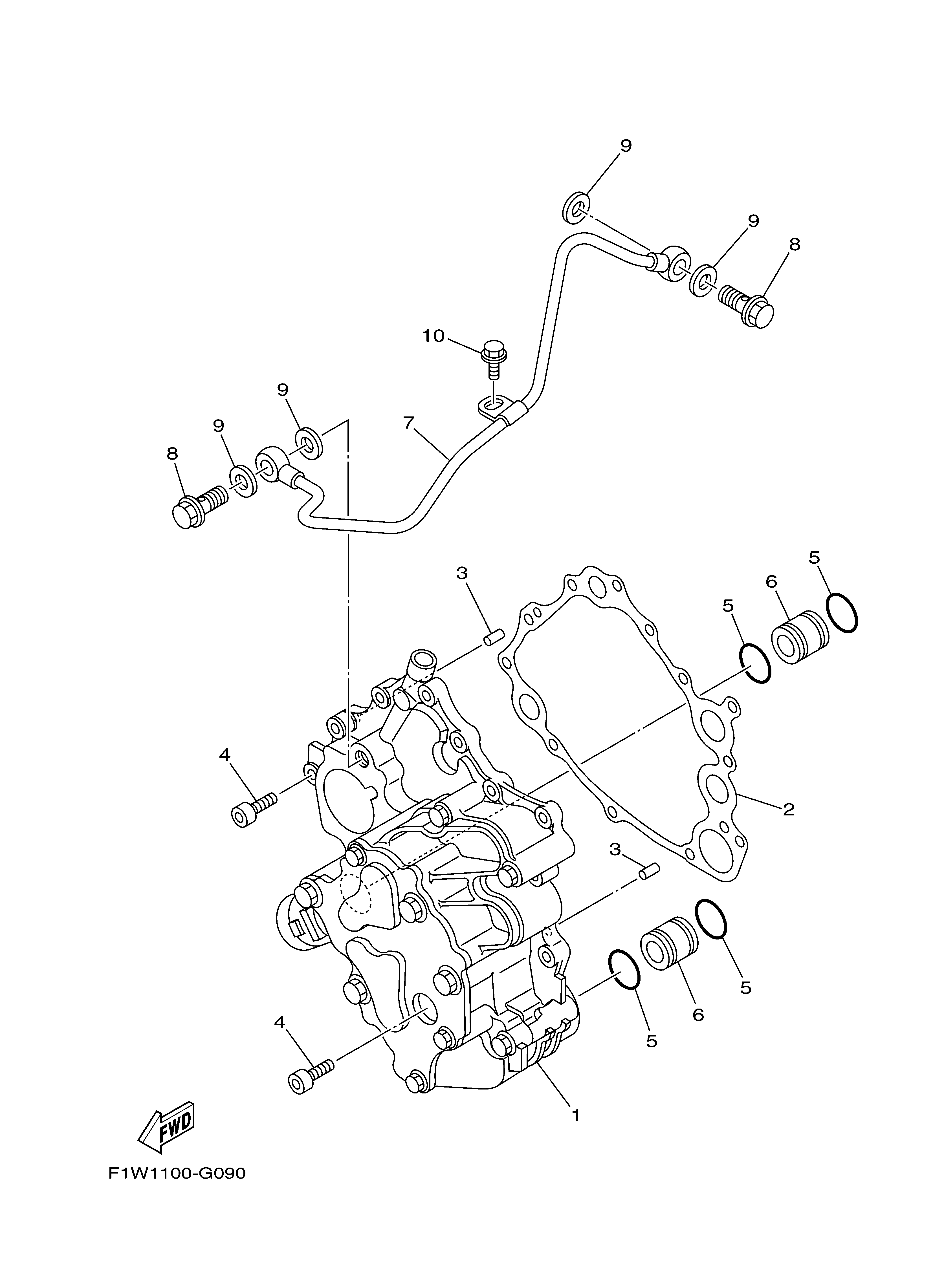

2011 FX CRUISER SHO (FX1800AK) F1WK - OIL PUMP
Roll over image to zoom in Click on image to zoom
2011 FX CRUISER SHO (FX1800AK) F1WK - OIL PUMP

2011 FX CRUISER SHO (FX1800AK) F1WK - OIL PUMP

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 6S5-13300-11-00 OIL PUMP ASSY 1
2 6S5-13563-00-00 . GASKET 1
3 93606-12019-00 PIN, DOWEL 2
4 91314-06020-00 BOLT, HEXAGON SOCKET HEAD 2
5 93210-21631-00 O-RING 4
6 6S5-13446-00-00 CONNECTOR 2
7 6S5-13416-00-00 PIPE, OIL 1 1
8 90401-10040-00 BOLT, UNION 2
9 90430-10007-00 . GASKET 4
10 95024-06012-00 BOLT, FLANGE(2UJ) 1
