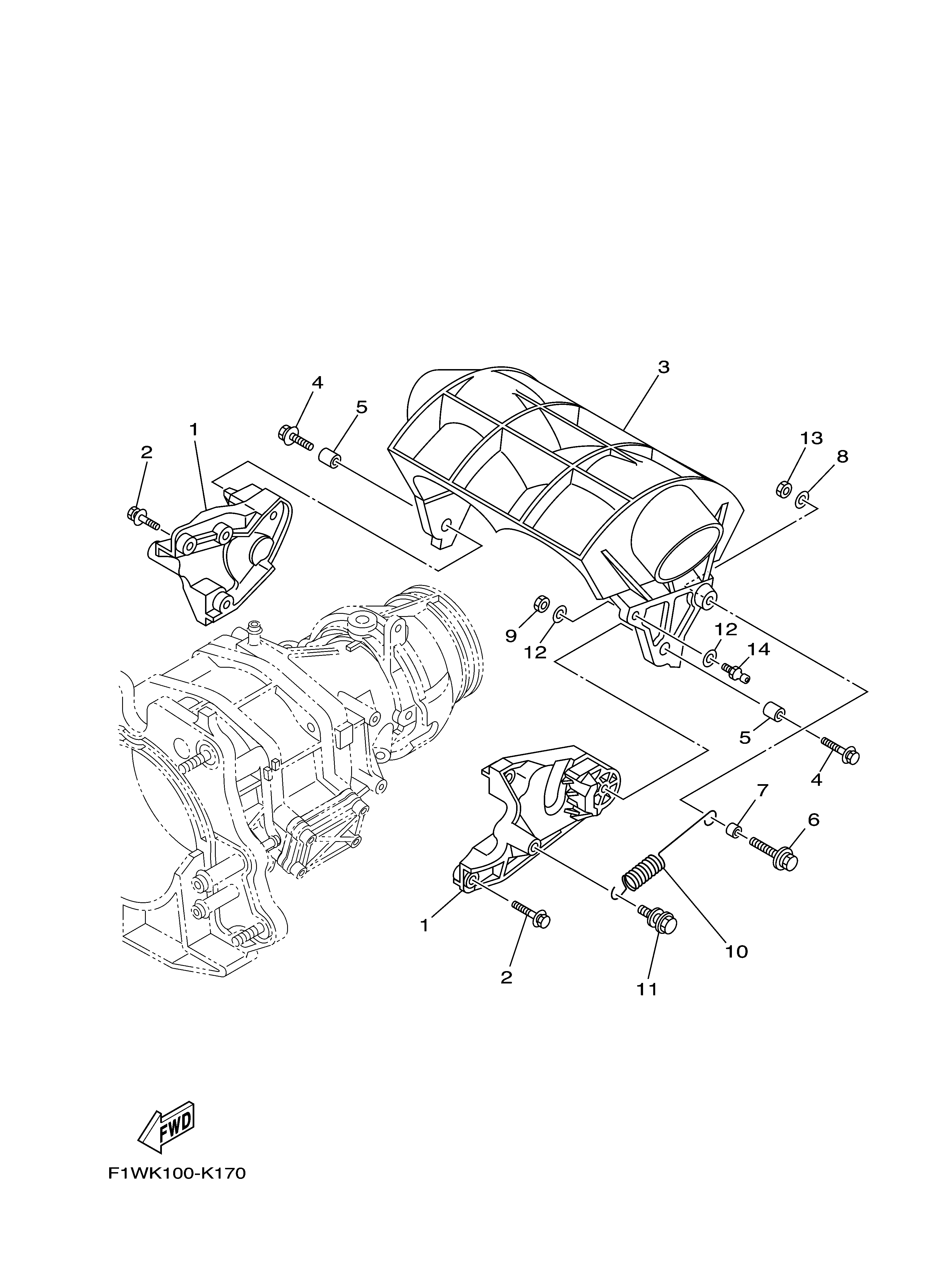

2011 FX CRUISER SHO (FX1800AK) F1WK - JET UNIT 3
Roll over image to zoom in Click on image to zoom
2011 FX CRUISER SHO (FX1800AK) F1WK - JET UNIT 3

2011 FX CRUISER SHO (FX1800AK) F1WK - JET UNIT 3

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 6S5-51341-00-94 BRACKET 1 2
2 90119-06892-00 BOLT, WITH WASHER 2
3 6S5-R1314-02-00 GATE, REVERSE 1
4 90119-08854-00 BOLT,WITH WASHER 2
5 90387-08M30-00 COLLAR 2
6 90119-069UX-00 BOLT, WITH WASHER 1
7 90387-06M30-00 COLLAR 1
8 90201-06020-00 WASHER, PLATE 1
9 9538R-06600-00 NUT 1
10 6S5-R2358-00-00 SPRING, RETAINER 1
11 6S5-45241-A0-00 BOLT, FLANGE W/WASHER 1
12 90201-06020-00 WASHER, PLATE 2
13 9538R-06600-00 NUT 1
14 EU0-U1461-10-00 SHAFT, JOINT BALL 1
