Description

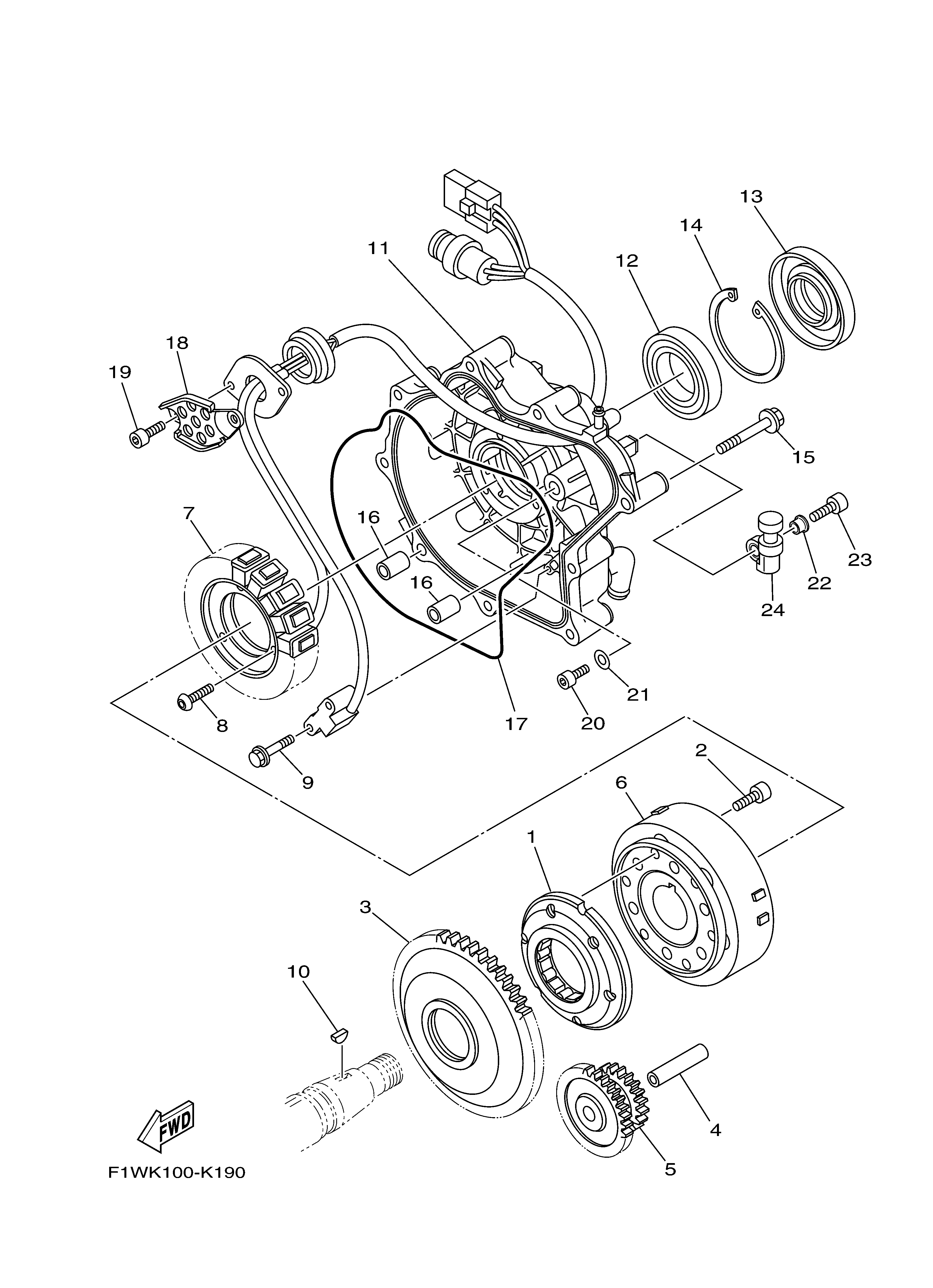

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-15590-00-00 | STARTER ONE-WAY ASSY | 1 |
| 2 | 91317-08020-00 | BOLT, SOCKET | 1 |
| 3 | 6LE-15515-00-00 | GEAR 3 | 1 |
| 4 | 6S5-15521-00-00 | SHAFT 1 | 1 |
| 5 | 6S5-15517-00-00 | GEAR, IDLER 2 | 1 |
| 6 | 6S5-81450-01-00 | ROTOR ASSY | 1 |
| 7 | 6S5-81410-00-00 | STATOR ASSY | 1 |
| 8 | 90149-06182-00 | SCREW | 1 |
| 9 | 97513-05514-00 | BOLT, WITH WASHER | 1 |
| 10 | 90280-03047-00 | KEY, WOODRUFF | 1 |
| 11 | 6S5-81337-10-94 | COVER, FLYWHEEL | 1 |
| 12 | 93306-00809-00 | BEARING | 1 |
| 13 | 6LE-81167-00-00 | OIL SEAL | 1 |
| 14 | 93420-72065-00 | CIRCLIP (70R) | 1 |
| 15 | 95024-08050-00 | BOLT, FLANGE (SMALL HEAD) | 1 |
| 16 | 99530-10114-00 | PIN, DOWEL | 2 |
| 17 | 6S5-81168-00-00 | . O-RING | 1 |
| 18 | 6S5-81328-00-00 | CLAMP | 1 |
| 19 | 91317-06014-00 | BOLT,HEX.SOCKET HEAD | 1 |
| 20 | 91317-05010-00 | BOLT, HEX. SOCKET HEAD | 1 |
| 21 | 90201-052E8-00 | WASHER, PLATE | 1 |
| 22 | 90387-06M05-00 | COLLAR | 1 |
| 23 | 91380-06020-00 | BOLT | 1 |
| 24 | 6S5-81364-11-00 | GROMMET | 1 |
