Description

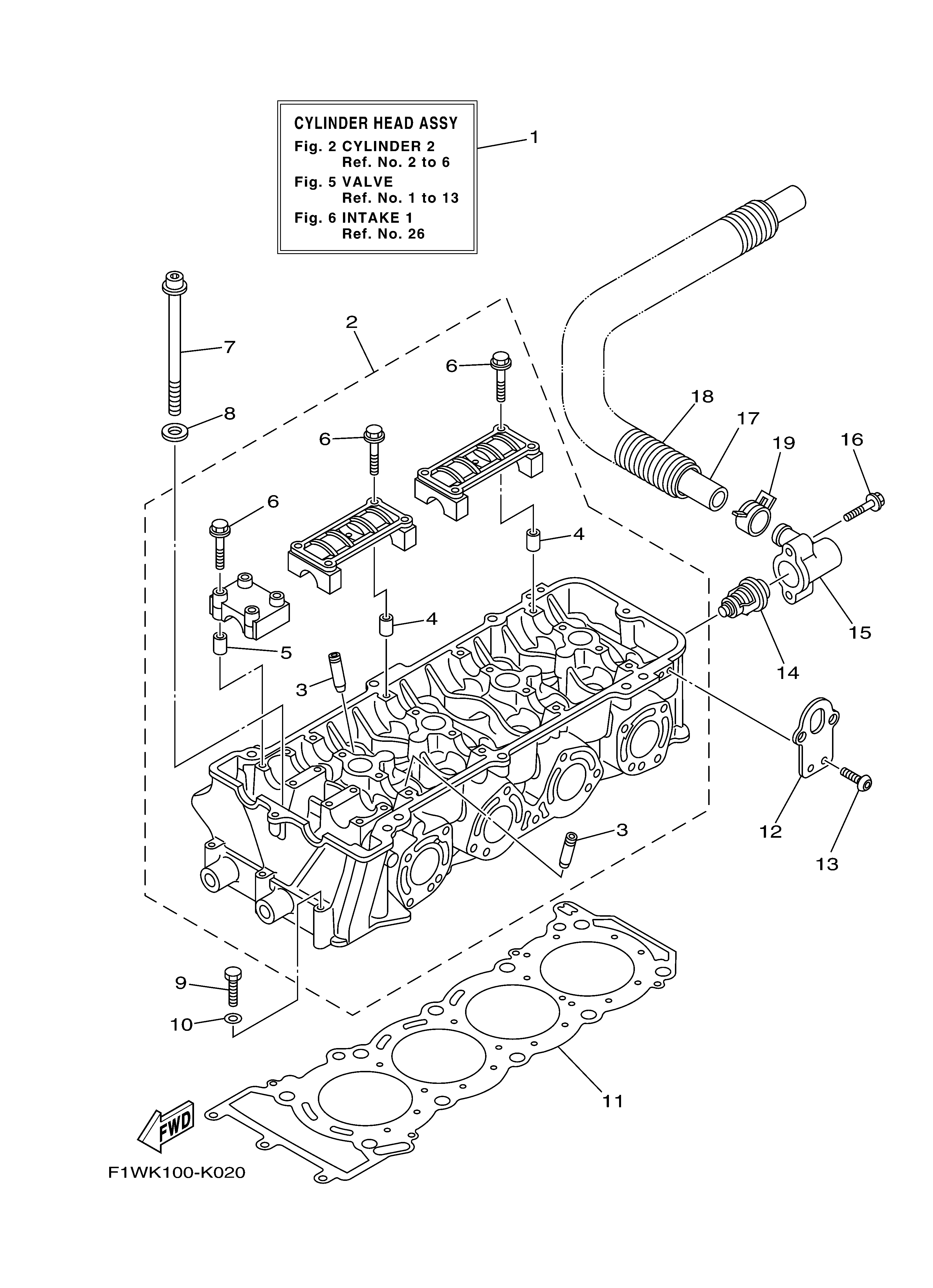

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 99999-04246-00 | CYLINDER HEAD COMPLETE (6S5_02 | 1 |
| 2 | 6S5-11102-20-00 | CYLINDER HEAD ASSY | 1 |
| 3 | 6S5-11133-10-00 | . GUIDE, VALVE 1 | 2 |
| 4 | 91809-16001-00 | . PIN, DOWEL | 2 |
| 5 | 91809-16001-00 | . PIN, DOWEL | 1 |
| 6 | 90105-07009-00 | . BOLT, FLANGE | 3 |
| 7 | 6S5-12228-01-00 | BOLT | 1 |
| 8 | 90201-12039-00 | WASHER, PLATE | 1 |
| 9 | 97013-06055-00 | BOLT | 1 |
| 10 | 92990-06600-00 | WASHER, PLAIN (646) | 1 |
| 11 | 6JC-11181-00-00 | GASKET, CYLINDER HEAD 1 | 1 |
| 12 | 6BH-1111E-00-00 | HANGER, ENGINE 2 | 1 |
| 13 | 92014-06012-00 | BOLT, BUTTON HEAD | 1 |
| 14 | 60E-12411-01-00 | THERMOSTAT | 1 |
| 15 | 6BH-12413-00-00 | COVER, THERMOSTAT | 1 |
| 16 | 90105-06035-00 | BOLT, FLANGE | 1 |
| 17 | 6S5-12578-00-00 | HOSE 3 | 1 |
| 18 | 90447-28008-00 | TUBE (L850) | 1 |
| 19 | 90467-240A0-00 | CLIP | 1 |
