Description

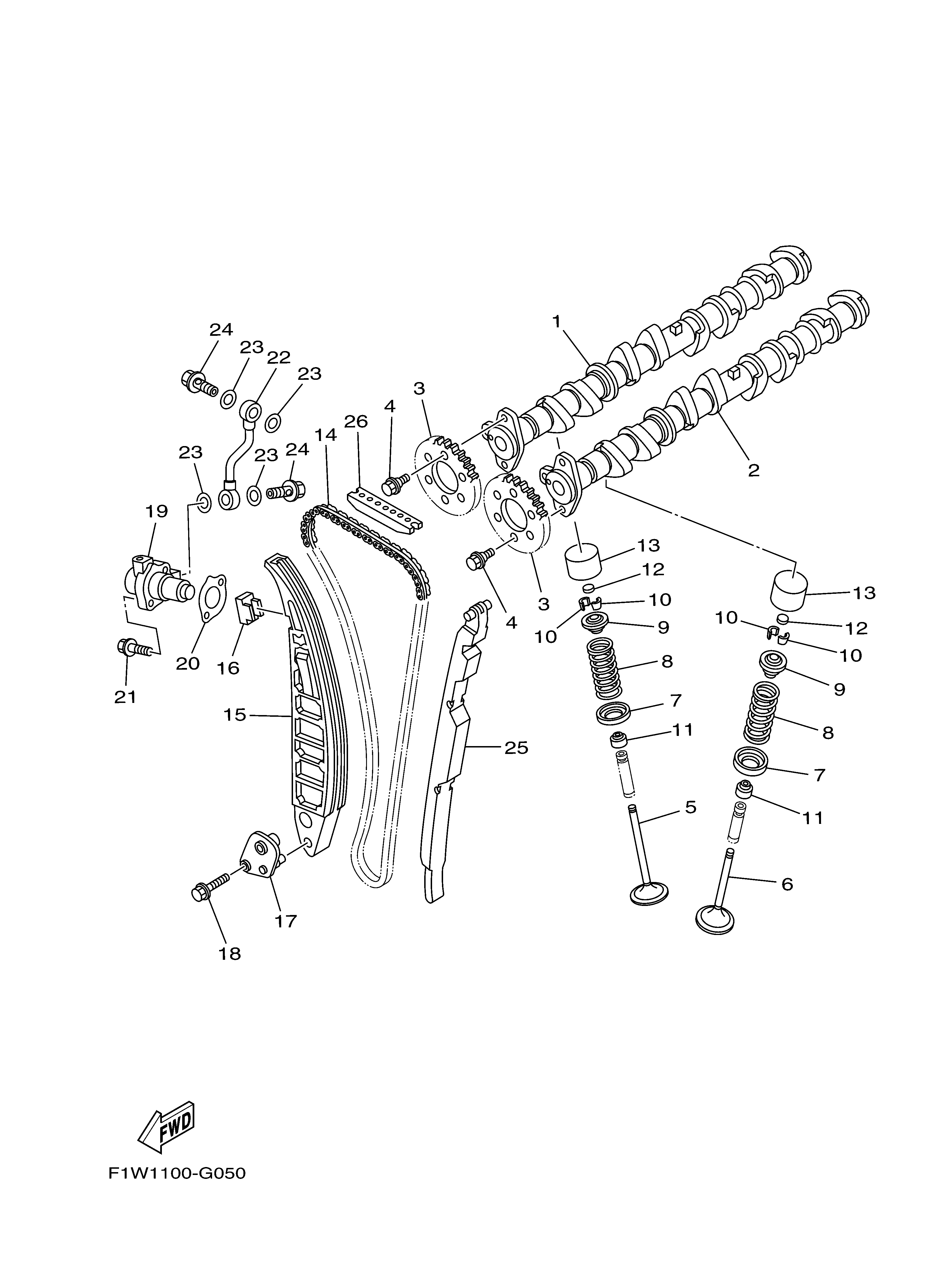

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 99999-04087-00 | CAMSHAFT 1 | 1 |
| 2 | 99999-04088-00 | CAMSHAFT 2 | 1 |
| 3 | 6D3-12176-00-00 | SPROCKET, CAM CHAIN | 2 |
| 4 | 90105-07004-00 | BOLT, FLANGE | 2 |
| 5 | 6S5-12111-01-00 | VALVE, INTAKE | 1 |
| 6 | 6S5-12121-00-00 | VALVE, EXHAUST | 1 |
| 7 | 6S5-12116-00-00 | SEAT, VALVE SPRING | 2 |
| 8 | 6S5-12113-00-00 | SPRING, VALVE INNER | 2 |
| 9 | 6S5-12117-00-00 | RETAINER, VALVE SPRING | 2 |
| 10 | 3LD-12118-00-00 | LOCK, VALVE SPRING RETAINER | 4 |
| 11 | 51Y-12119-00-00 | SEAL, VALVE STEM | 2 |
| 12 | 3LD-12168-00-00 | PAD, ADJUSTING (1.20) | 2 |
| 12 | 3LD-12168-20-00 | PAD, ADJUSTING (1.25) | 2 |
| 12 | 3LD-12168-40-00 | PAD, ADJUSTING (1.30) | 2 |
| 12 | 3LD-12168-60-00 | PAD, ADJUSTING (1.35) | 2 |
| 12 | 3LD-12168-80-00 | PAD, ADJUSTING (1.40) | 2 |
| 12 | 3LD-12168-A0-00 | PAD, ADJUSTING (1.45) | 2 |
| 12 | 3LD-12168-F0-00 | PAD, ADJUSTING (1.50) | 2 |
| 12 | 3LD-12168-H1-00 | PAD, ADJUSTING (1.55) | 2 |
| 12 | 3LD-12168-K1-00 | PAD, ADJUSTING (1.60) | 2 |
| 12 | 3LD-12168-M1-00 | PAD, ADJUSTING (1.65) | 2 |
| 12 | 3LD-12168-R1-00 | PAD, ADJUSTING (1.70) | 2 |
| 12 | 3LD-12168-U1-00 | PAD, ADJUSTING (1.75) | 2 |
| 12 | 3LD-12168-W1-00 | PAD, ADJUSTING (1.80) | 2 |
| 12 | 3LD-12168-Y1-00 | PAD, ADJUSTING (1.85) | 2 |
| 12 | 3LD-12169-11-00 | PAD, ADJUSTING (1.90) | 2 |
| 12 | 3LD-12169-31-00 | PAD, ADJUSTING (1.95) | 2 |
| 12 | 3LD-12169-50-00 | PAD, ADJUSTING (2.00) | 2 |
| 12 | 3LD-12169-70-00 | PAD, ADJUSTING (2.05) | 2 |
| 12 | 3LD-12169-90-00 | PAD, ADJUSTING (2.10) | 2 |
| 12 | 3LD-12169-E0-00 | PAD, ADJUSTING (2.15) | 2 |
| 12 | 3LD-12169-G0-00 | PAD, ADJUSTING (2.20) | 2 |
| 12 | 3LD-12169-J0-00 | PAD, ADJUSTING (2.25) | 2 |
| 12 | 3LD-12169-L0-00 | PAD, ADJUSTING (2.30) | 2 |
| 13 | 6S5-12153-00-00 | LIFTER, VALVE | 2 |
| 14 | 94591-66152-00 | CHAIN | 1 |
| 15 | 6S5-12252-00-00 | DAMPER, CHAIN 2 | 1 |
| 16 | 6S5-12215-00-00 | CAP, TENSIONER CASE | 1 |
| 17 | 6BH-12279-00-00 | PLATE | 1 |
| 18 | 95814-06030-00 | BOLT, FLANGE | 1 |
| 19 | 6S5-12210-02-00 | TENSIONER ASSY, CA | 1 |
| 20 | 6S5-121E2-00-00 | . GASKET | 1 |
| 21 | 91380-06025-00 | BOLT | 1 |
| 22 | 6S5-13418-00-00 | PIPE, OIL 2 | 1 |
| 23 | 90430-10007-00 | . GASKET | 4 |
| 24 | 90401-10040-00 | BOLT, UNION | 2 |
| 25 | 6S5-12251-00-00 | DAMPER, CHAIN 1 | 1 |
| 26 | 6S5-12241-00-00 | GUIDE, STOPPER 2 | 1 |
