Description

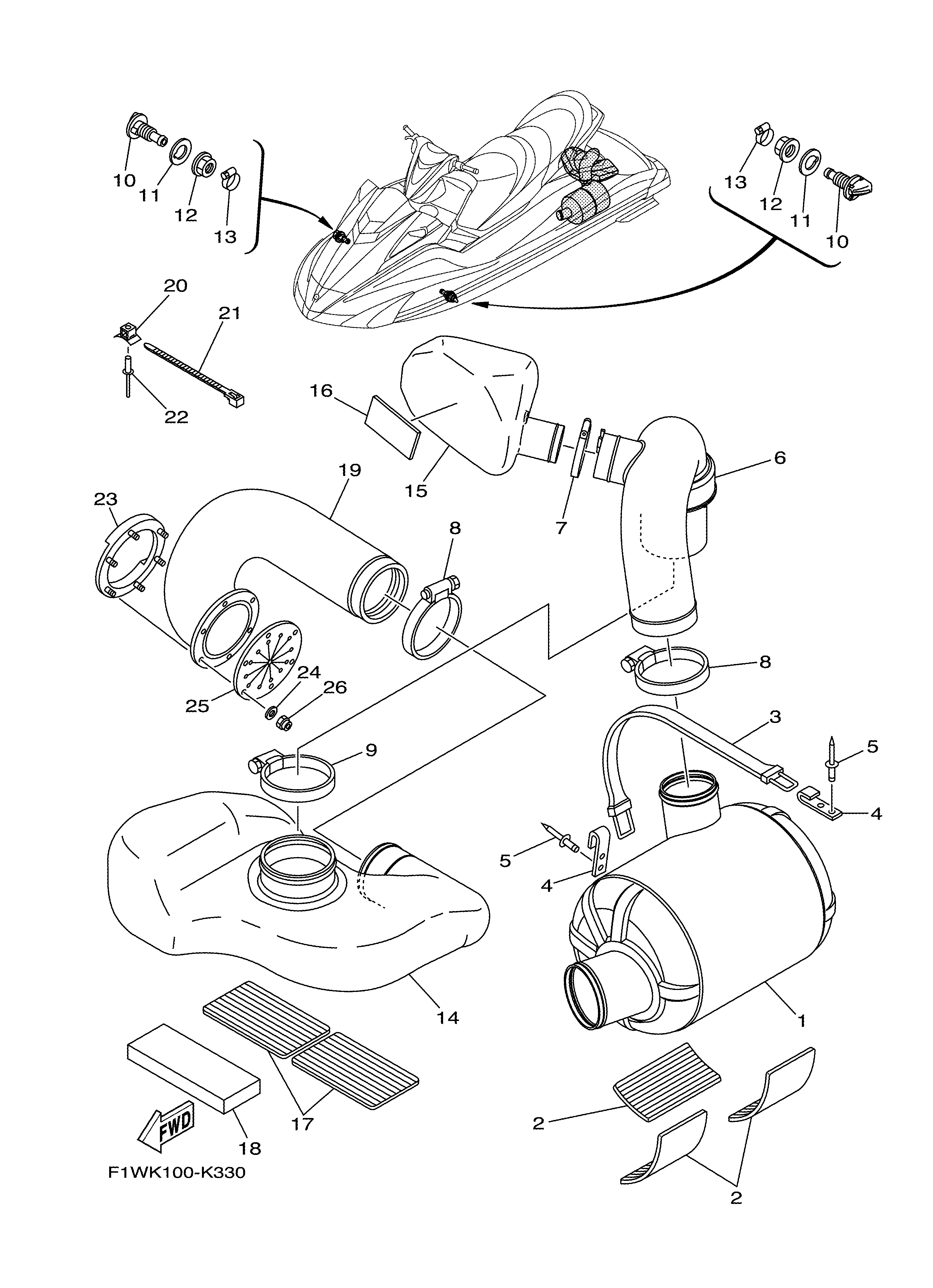

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F4P-U7550-00-00 | WATER LOCK COMP. | 1 |
| 2 | F1S-U8221-00-00 | PAD, BATTERY | 2 |
| 3 | EW2-67821-00-00 | BAND, FUEL TANK | 1 |
| 4 | GA7-65772-00-00 | HOOK A | 2 |
| 5 | 90267-48938-00 | RIVET (EU0) | 2 |
| 6 | F1W-U7555-01-00 | HOSE, EXHAUST | 1 |
| 7 | 90601-170UG-00 | BAND, HOSE 70 | 1 |
| 8 | 90450-99801-00 | HOSE CLAMP ASSY | 2 |
| 9 | 90450-99804-00 | HOSE CLAMP ASSY | 1 |
| 10 | F1K-6753B-00-00 | PILOT, WATER | 2 |
| 11 | F1B-67564-00-00 | GASKET | 2 |
| 12 | F0X-62733-00-00 | NUT | 2 |
| 13 | 90467-17802-00 | CLIP | 2 |
| 14 | F1W-U4261-00-00 | TANK, WATER | 1 |
| 15 | F1W-U753C-01-00 | RESONATOR 1 | 1 |
| 16 | F1K-U759C-00-00 | MAT 2 | 1 |
| 17 | F1S-U8221-00-00 | PAD, BATTERY | 1 |
| 18 | F1W-U8831-01-00 | BED,TANK 1 | 1 |
| 19 | F1B-U758D-03-00 | HOSE,EXHAUST 3 | 1 |
| 20 | F1W-U828M-00-00 | BASE, CLAMP | 1 |
| 21 | 90464-32801-00 | CLAMP | 1 |
| 22 | 90267-48802-00 | RIVET, BLIND | 1 |
| 23 | F1S-U757B-01-00 | PLATE | 1 |
| 24 | 9299R-06200-00 | WASHER | 1 |
| 25 | F1B-U751G-10-00 | VALVE, EXHAUST | 1 |
| 26 | 9572R-06300-00 | NUT, NYLON | 1 |
