Description

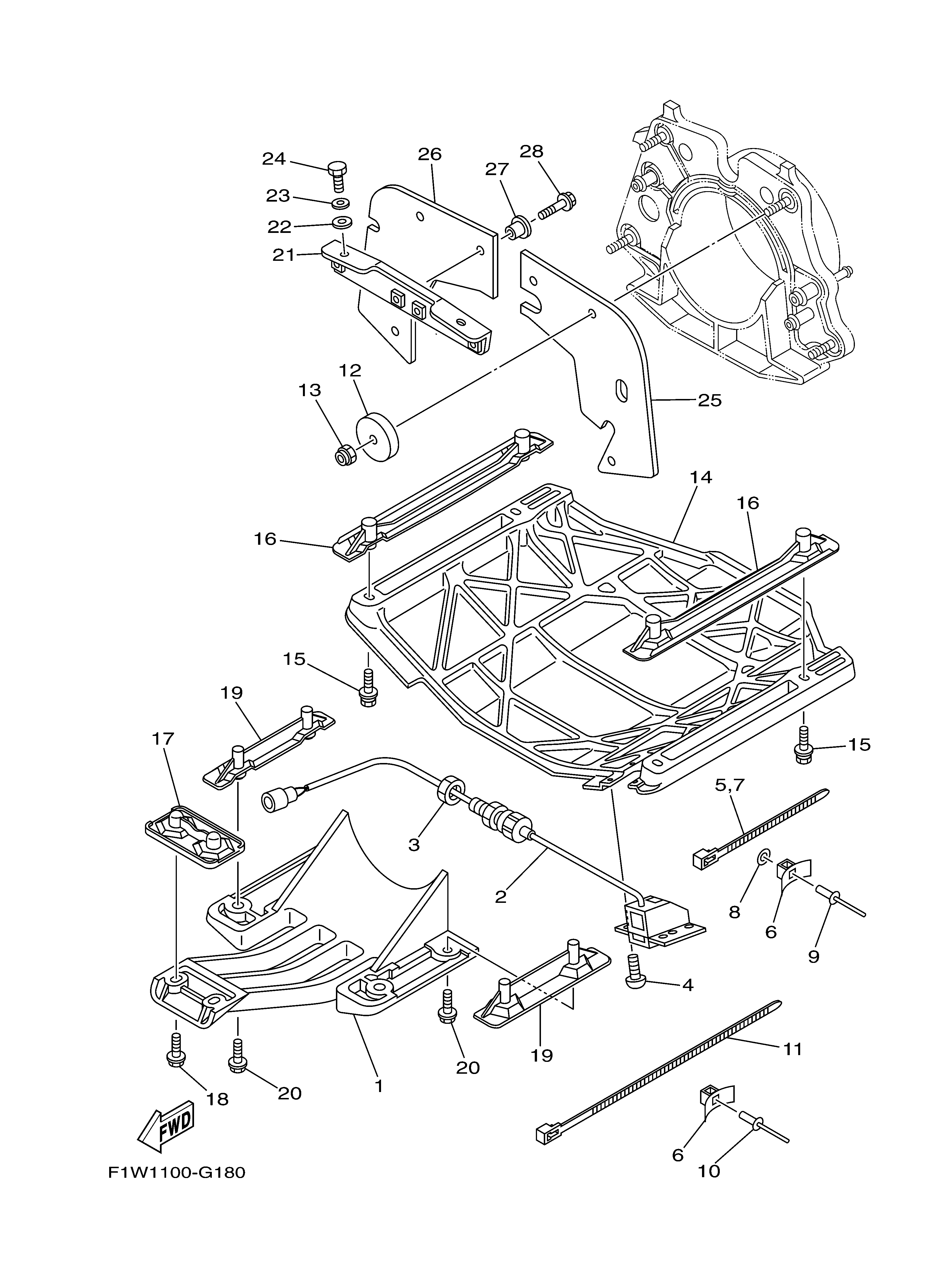

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-R1333-02-00 | SCREEN, INTAKE | 1 |
| 2 | F1X-U8K31-02-00 | SENSOR SPEED | 1 |
| 3 | F2C-U151S-00-00 | NUT | 1 |
| 4 | 90150-05807-00 | SCREW, ROUND HEAD | 1 |
| 5 | 90464-32801-00 | CLAMP | 1 |
| 6 | F1W-U828M-00-00 | BASE, CLAMP | 2 |
| 7 | 90464-32801-00 | CLAMP | 1 |
| 8 | 9299R-05200-00 | WASHER | 1 |
| 9 | 90267-48802-00 | RIVET, BLIND | 1 |
| 10 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 11 | 90464-99801-00 | CLAMP | 1 |
| 12 | F1S-U725E-01-00 | WASHER | 1 |
| 13 | 9572R-10300-00 | . NUT, NYLON | 1 |
| 14 | F1W-6273B-02-00 | PLATE 2 | 1 |
| 15 | 90119-08829-00 | BOLT, WITH WASHER | 2 |
| 16 | F1B-U8572-01-00 | BRACKET 2 | 2 |
| 17 | F1K-U8577-01-00 | BRACKET, 3 | 1 |
| 18 | 90119-06896-00 | BOLT, WITH WASHER | 1 |
| 19 | F1G-U8571-02-00 | BRACKET 1 | 2 |
| 20 | 90119-08829-00 | BOLT, WITH WASHER | 2 |
| 21 | F1B-67557-00-00 | BRACKET | 1 |
| 22 | 90430-12002-00 | GASKET | 1 |
| 23 | 92990-12200-00 | WASHER, PLAIN | 1 |
| 24 | 90109-08043-00 | BOLT | 1 |
| 25 | F1X-U757E-00-00 | PLATE, RUBBER 1 | 1 |
| 26 | F1X-U757F-00-00 | PLATE, RUBBER 2 | 1 |
| 27 | 90387-06080-00 | COLLAR | 1 |
| 28 | 90119-06827-00 | BOLT, WITH WASHER | 1 |
