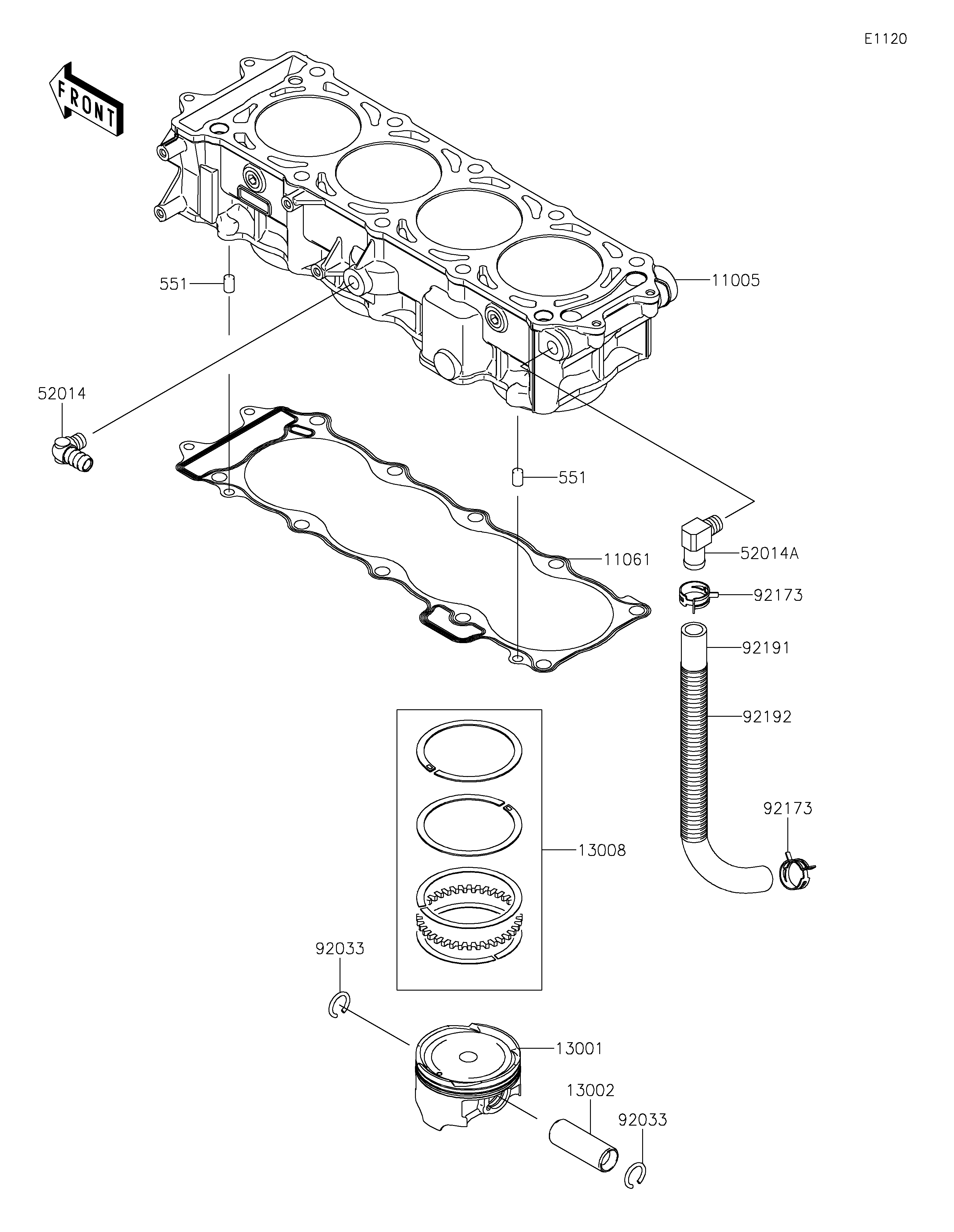

2024 SX-R 160 (JS1500ARFNN)-Cylinder Piston(s)
Roll over image to zoom in Click on image to zoom
2024 SX-R 160 (JS1500ARFNN)-Cylinder Piston(s)

2024 SX-R 160 (JS1500ARFNN)-Cylinder Piston(s)

JETSTAR [Jetskiparts from Japan]

Description

REF # PART NUMBER ITEM NAME QTY
11005 11005-3768 CYLINDER-ENGINE 1
11061 11061-3708 GASKET,CYLINDER BASE 1
13001 13001-3737 PISTON-ENGINE 4
13002 13002-3709 PIN-PISTON 4
13008 13008-0048 RING-SET-PISTON 4
39162 39162-3718 SEPARATOR-AIR 1
92006 92006-3708 RIVET-PUSH,T=13.5 3
92033 92033-3740 RING-SNAP 4
92048 92048-3778 SPRING 8
92055 92055-1605 RING-O,38.7X2.4 4
92154 92154-3782 BOLT,SOCKET,6X16 2
92200 92200-1928 WASHER,11X18X1 6
