Description

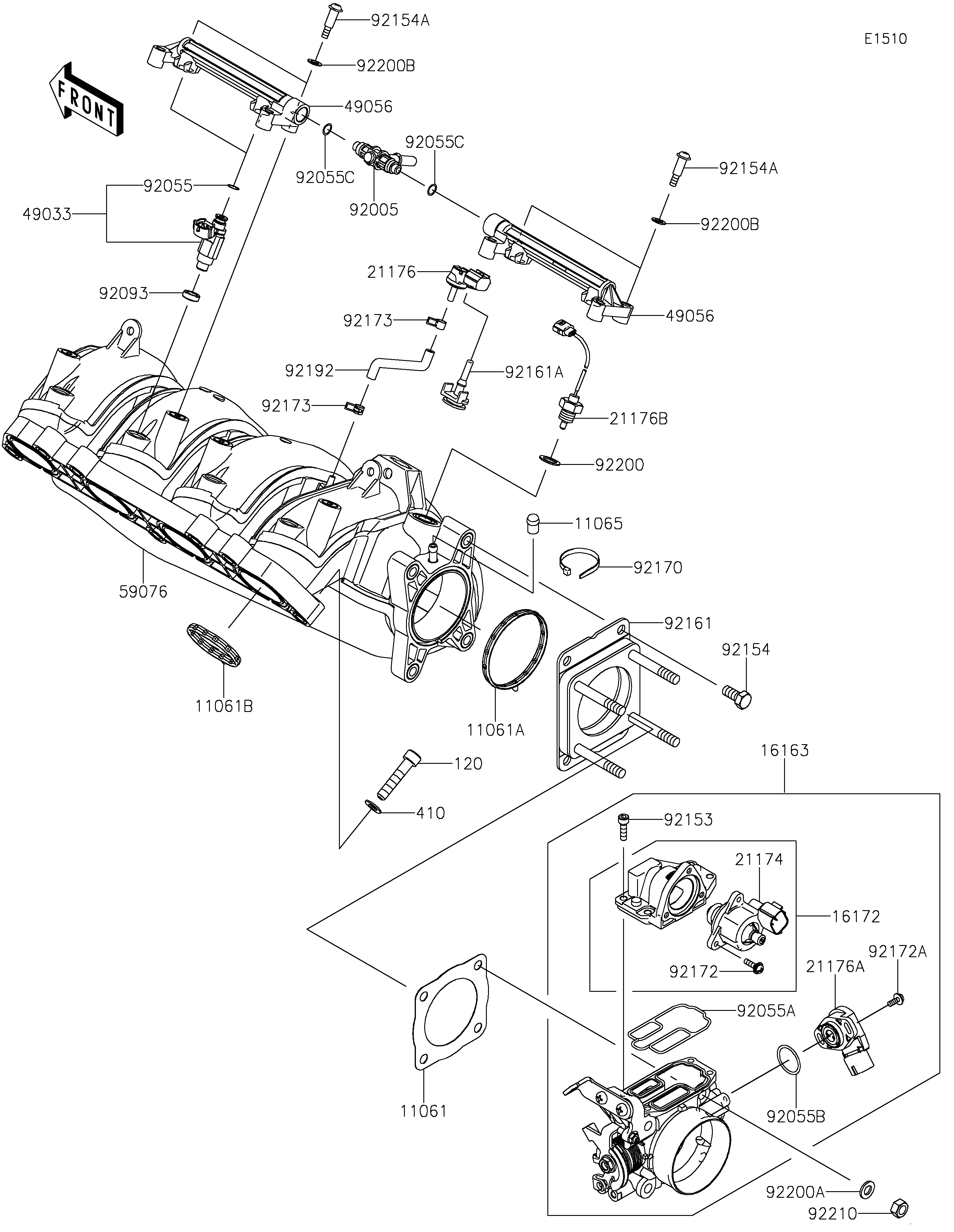

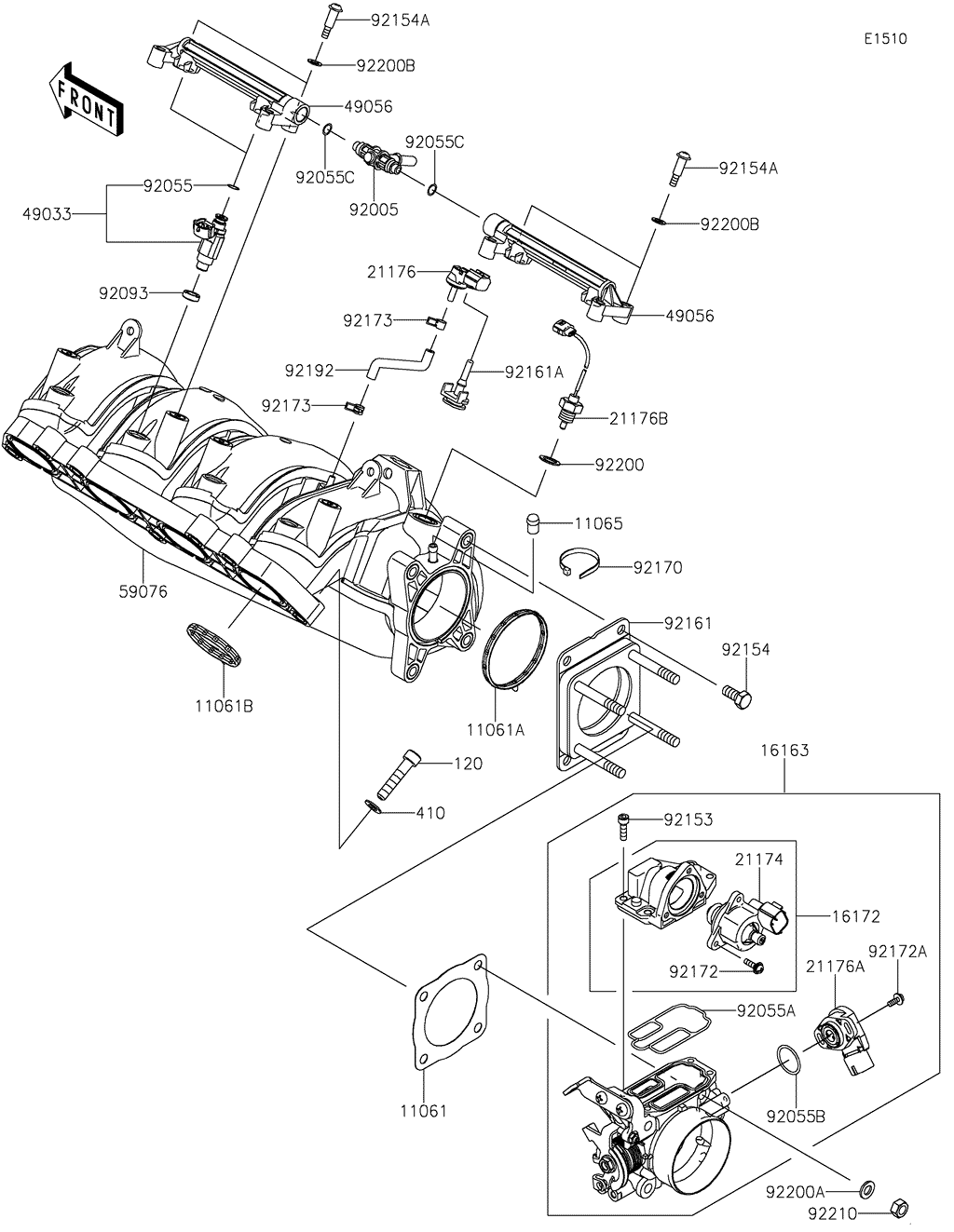

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 11061 | 11061-0824 | GASKET,THROTTLE | 1 |
| 11061A | 11061-3766 | GASKET,MANIFOLD | 1 |
| 11061B | 11061-3767 | GASKET,THROTTLE | 4 |
| 11065 | 11065-0764 | CAP | 1 |
| 16163 | 16163-0919 | THROTTLE-ASSY | 1 |
| 16172 | 16172-0561 | ACTUATOR | 1 |
| 21174 | 21174-0555 | MOTOR-ELECTRIC,STM | 1 |
| 21176 | 21176-0906 | SENSOR,PRESSURE | 1 |
| 21176A | 21176-3762 | SENSOR,TPS | 1 |
| 21176B | 21176-3767 | SENSOR,AIR TEMPERATURE | 1 |
| 49033 | 49033-3707 | NOZZLE-INJECTION | 4 |
| 49056 | 49056-3705 | PIPE-INJECTION,FUEL | 2 |
| 59076 | 59076-0006 | MANIFOLD-INTAKE | 1 |
| 92005 | 92005-3766 | FITTING,FUEL PIPE | 1 |
| 92055 | 92055-1622 | RING-O,INJECTION NOZZLE | 4 |
| 92055A | 92055-3773 | RING-O | 1 |
| 92055B | 92055-3774 | RING-O | 1 |
| 92055C | 92055-3782 | RING-O | 2 |
| 92093 | 92093-0127 | SEAL | 4 |
| 92153 | 92153-3723 | BOLT | 4 |
| 92154 | 92154-1389 | BOLT | 4 |
| 92154A | 92154-3713 | BOLT | 4 |
| 92161 | 92161-1942 | DAMPER | 1 |
| 92161A | 92161-3796 | DAMPER | 1 |
| 92170 | 92170-3749 | CLAMP | 1 |
| 92172 | 92172-3710 | SCREW | 3 |
| 92172A | 92172-3711 | SCREW | 2 |
| 92173 | 92173-3702 | CLAMP | 2 |
| 92192 | 92192-1361 | TUBE | 1 |
| 92200 | 92200-0712 | WASHER,12X18X1 | 1 |
| 92200A | 92200-3806 | WASHER | 4 |
| 92200B | 92200-3807 | WASHER | 4 |
| 92210 | 92210-0897 | NUT | 4 |
| 120 | 120CC0840 | BOLT-SOCKET,8X40 | 7 |
| 410 | 410S0800 | WASHER-PLAIN-SMALL,8MM | 7 |
