Description

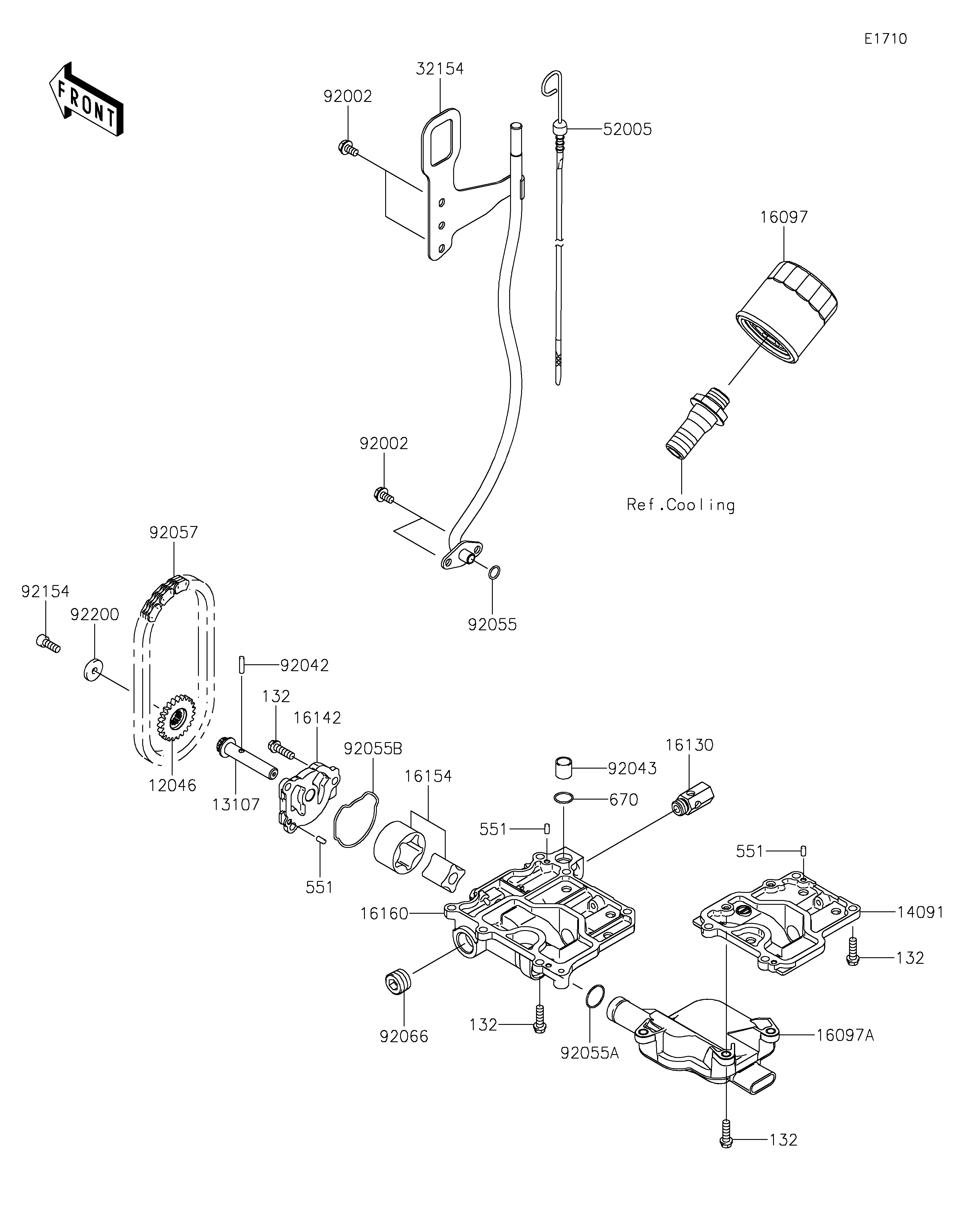

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 12046 | 12046-3708 | SPROCKET,23T | 1 |
| 13107 | 13107-0730 | SHAFT | 1 |
| 14091 | 14091-3767 | COVER | 1 |
| 16097 | 16097-0007 | FILTER-ASSY-OIL | 1 |
| 16097A | 16097-3702 | FILTER-ASSY-OIL | 1 |
| 16130 | 16130-3701 | VALVE-ASSY-RELIEF | 1 |
| 16142 | 16142-3703 | COVER-PUMP | 1 |
| 16154 | 16154-1124 | ROTOR-PUMP | 1 |
| 16160 | 16160-0705 | BODY,OIL PUMP | 1 |
| 32154 | 32154-3707 | PIPE,OIL LEVEL | 1 |
| 52005 | 52005-3710 | GAUGE,OIL LEVEL | 1 |
| 92002 | 92002-3763 | BOLT,6X12 | 4 |
| 92042 | 92042-014 | PIN,DOWEL,4X15.8 | 1 |
| 92043 | 92043-1279 | PIN,11.5X14X14 | 1 |
| 92055 | 92055-1150 | RING-O,9.8X2.4 | 1 |
| 92055A | 92055-1332 | RING-O,19.8X1.9 | 1 |
| 92055B | 92055-3764 | RING-O | 1 |
| 92057 | 92057-3713 | CHAIN,OIL PUMP,98XRH2010-52L | 1 |
| 92066 | 92066-0002 | PLUG,PT1/2X12.5 | 1 |
| 92154 | 92154-3709 | BOLT,SOCKET,6X16 | 1 |
| 92200 | 92200-0120 | WASHER,6X20X3.2 | 1 |
| 132 | 132BD0620 | BOLT-FLANGED-SMALL,6X20 | 16 |
| 551 | 551R0408 | PIN-DOWEL | 5 |
| 670 | 670D2014 | O RING,14MM | 1 |
