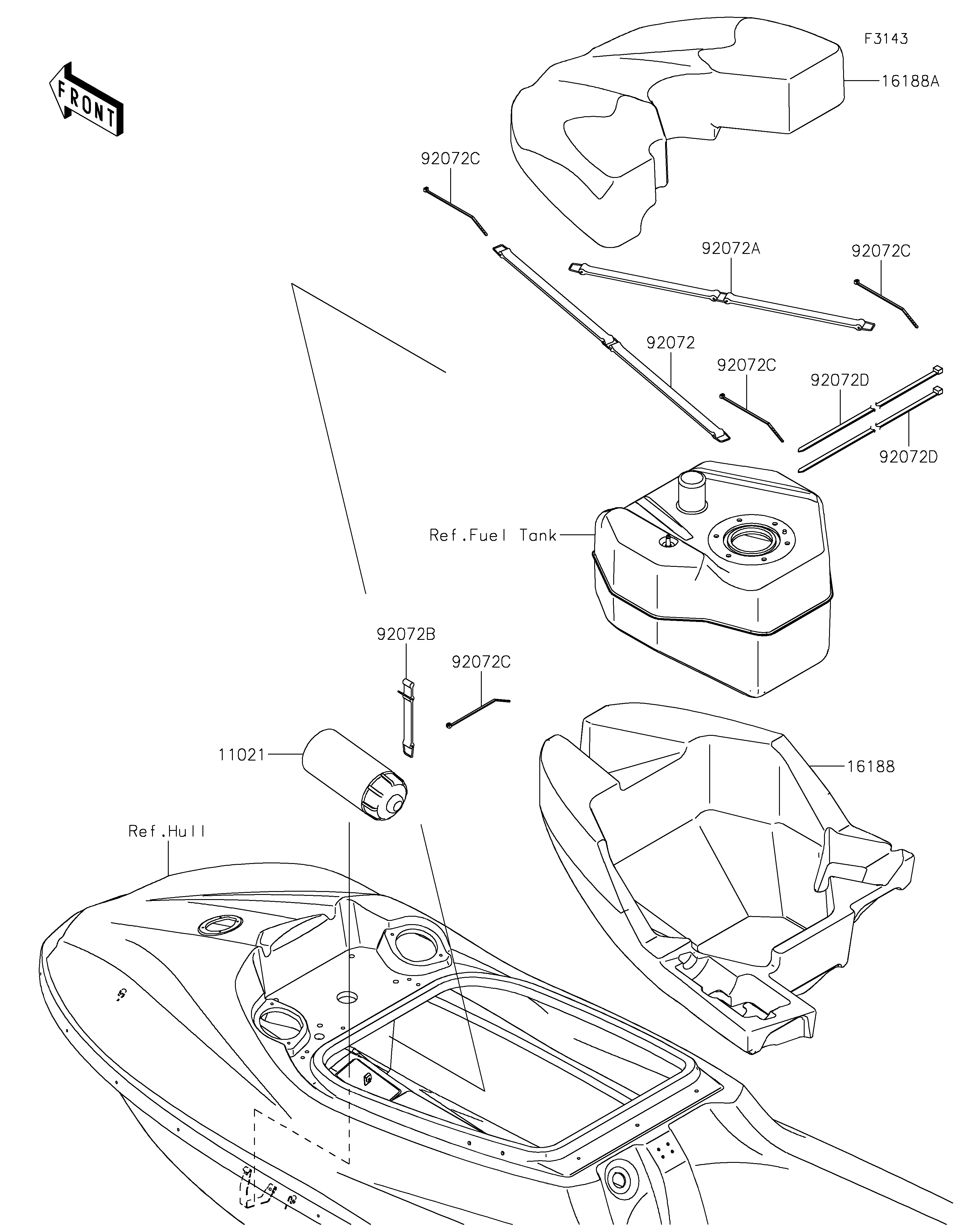

2024 SX-R 160 (JS1500ARFNN)-Hull Fittings
Roll over image to zoom in Click on image to zoom
2024 SX-R 160 (JS1500ARFNN)-Hull Fittings

2024 SX-R 160 (JS1500ARFNN)-Hull Fittings

JETSTAR [Jetskiparts from Japan]

Description

REF # PART NUMBER ITEM NAME QTY
11021 11021-3706 CASE-ASSY,TOOL 1
16188 16188-0050 FLOAT,LWR 1
16188A 16188-0051 FLOAT,UPP 1
92072 92072-0797 BAND,L=745MM 1
92072A 92072-0808 BAND,L=593MM 1
92072B 92072-3859 BAND,TOOL CASE 1
92072C 92072-3882 BAND,L=100.08 4
92072D 92072-3884 BAND,L=608.22 2
