Description

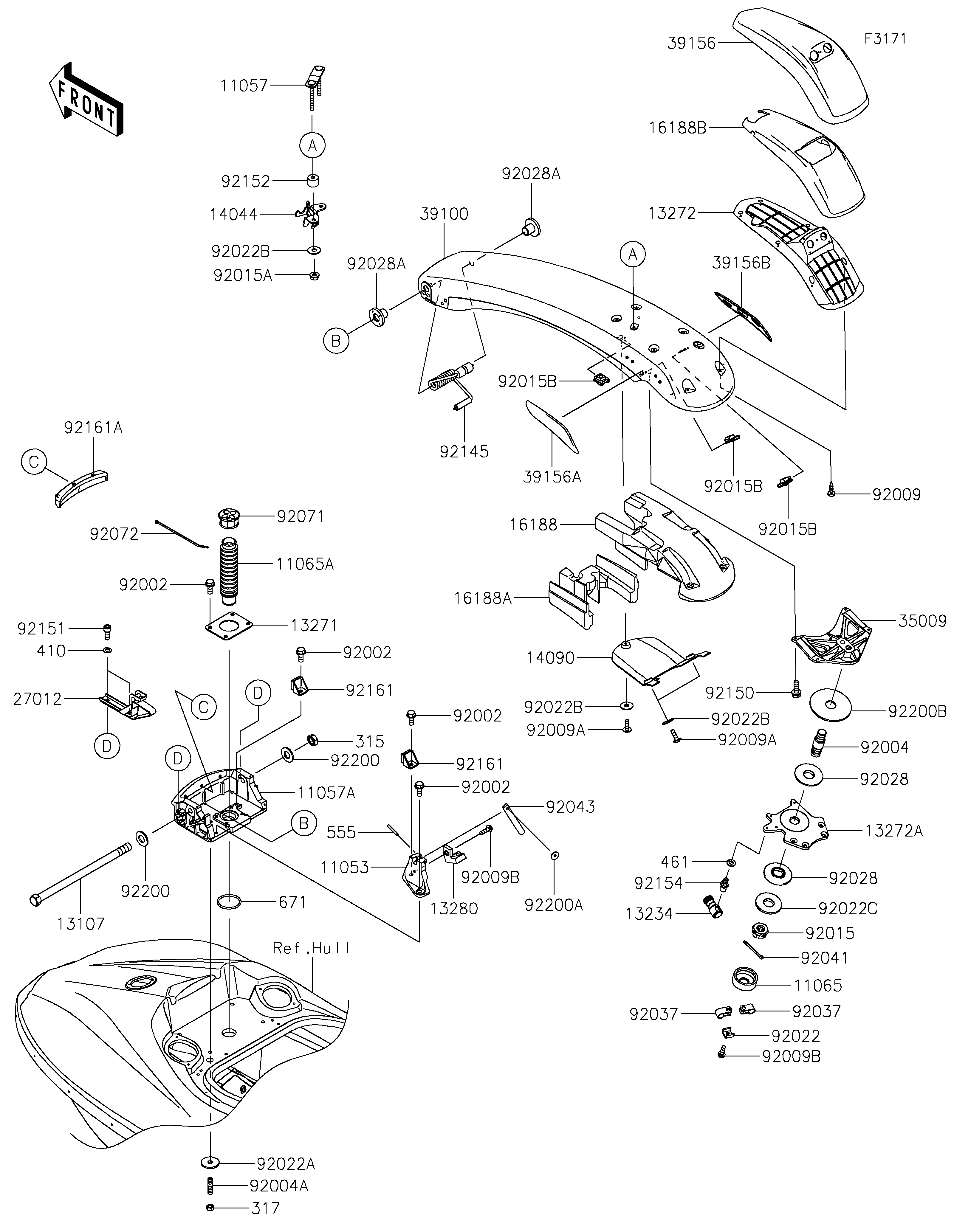

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 11053 | 11053-3749 | BRACKET | 1 |
| 11057 | 11057-0804 | BRACKET | 1 |
| 11057A | 11057-1049 | BRACKET | 1 |
| 11065 | 11065-0982 | CAP | 1 |
| 11065A | 11065-3726 | CAP | 1 |
| 13107 | 13107-3781 | SHAFT | 1 |
| 13234 | 13234-3713 | SHAFT-COMP | 1 |
| 13271 | 13271-3882 | PLATE | 1 |
| 13272 | 13272-2223 | PLATE,INDICATOR | 1 |
| 13272A | 13272-2268 | PLATE | 1 |
| 13280 | 13280-0885 | HOLDER | 1 |
| 14044 | 14044-0568 | HOLDER-CABLE | 1 |
| 14090 | 14090-3708-72B | COVER,HANDLE POLE,I.GRAY | 1 |
| 16188 | 16188-0027 | FLOAT,HANDLE POLE,UPP | 1 |
| 16188A | 16188-0052 | FLOAT,HANDLE POLE,LWR | 1 |
| 16188B | 16188-0053 | FLOAT | 1 |
| 27012 | 27012-3859 | HOOK | 2 |
| 35009 | 35009-3712 | BRACE | 1 |
| 39100 | 39100-0001-72B | POLE-COMP-HANDLE,I.GRAY | 1 |
| 39156 | 39156-2142-6Z | PAD,HANDLE,F.BLACK | 1 |
| 39156A | 39156-2172 | PAD,HANDLE POLE,LH | 1 |
| 39156B | 39156-2173 | PAD,HANDLE POLE,RH | 1 |
| 92002 | 92002-3728 | BOLT,6X16 | 7 |
| 92004 | 92004-0776 | STUD | 1 |
| 92004A | 92004-3756 | STUD,8X25 | 4 |
| 92009 | 92009-3716 | SCREW,TAPPING,5X20 | 6 |
| 92009A | 92009-3797 | SCREW,5X16 | 3 |
| 92009B | 92009-3868 | SCREW,5X16 | 2 |
| 92015 | 92015-3006 | NUT,CASTLE,18MM | 1 |
| 92015A | 92015-3767 | NUT,6MM | 2 |
| 92015B | 92015-3830 | NUT,CLIP,5MM | 3 |
| 92022 | 92022-3014 | WASHER,CLAMP | 1 |
| 92022A | 92022-3746 | WASHER,8.5X34X3 | 4 |
| 92022B | 92022-567 | WASHER | 5 |
| 92022C | 92022-571 | WASHER | 1 |
| 92028 | 92028-3743 | BUSHING | 2 |
| 92028A | 92028-3752 | BUSHING,STEERING | 2 |
| 92037 | 92037-3007 | CLAMP,LEAD WIRE | 2 |
| 92041 | 92041-0011 | COTTER | 1 |
| 92043 | 92043-3754 | PIN,STOPPER | 1 |
| 92071 | 92071-0775 | GROMMET | 1 |
| 92072 | 92072-0105 | BAND,L=188.85 | 1 |
| 92145 | 92145-3720 | SPRING | 1 |
| 92150 | 92150-3758 | BOLT,6X20 | 4 |
| 92151 | 92151-3770 | BOLT,SOCKET,6X16 | 4 |
| 92152 | 92152-2338 | COLLAR,6.5X20X15 | 2 |
| 92154 | 92154-3710 | BOLT,BALL,6MM | 1 |
| 92161 | 92161-1919 | DAMPER | 2 |
| 92161A | 92161-3743 | DAMPER | 1 |
| 92200 | 92200-1847 | WASHER-PLAIN,15X30X2.6 | 2 |
| 92200A | 92200-3723 | WASHER,3.5X12X1 | 1 |
| 92200B | 92200-3725 | WASHER,20.5X80X3 | 1 |
| 315 | 315R1400 | NUT-HEX-FINE,14MM | 1 |
| 317 | 317R0800 | NUT-HEX-SMALL,8MM | 4 |
| 410 | 410S0600 | WASHER-PLAIN-SMALL,6MM | 4 |
| 461 | 461S0600 | WASHER-SPRING,6MM | 1 |
| 555 | 555B0325 | PIN-SPRING,3X25 | 1 |
| 671 | 671B2540 | O RING,40MM | 1 |
