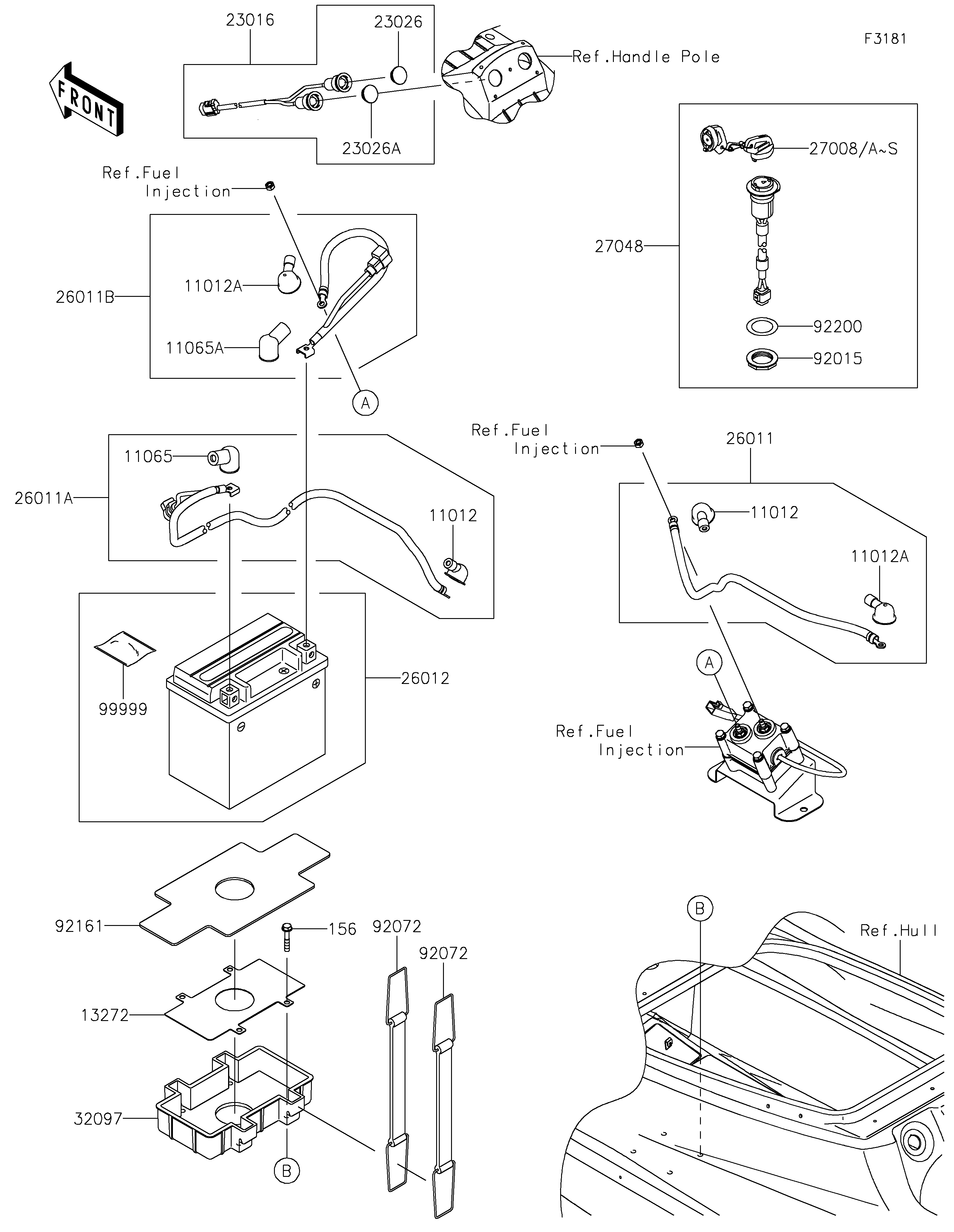

2024 SX-R 160 (JS1500ARFNN)-Electrical Equipment
Roll over image to zoom in Click on image to zoom
2024 SX-R 160 (JS1500ARFNN)-Electrical Equipment

2024 SX-R 160 (JS1500ARFNN)-Electrical Equipment

JETSTAR [Jetskiparts from Japan]

Description

REF # PART NUMBER ITEM NAME QTY
11012 11012-3004 CAP 2
11012A 11012-3726 CAP,LEAD WIRE 2
11065 11065-3729 CAP,TERMINAL 1
11065A 11065-3732 CAP,TERMINAL 1
13272 13272-7079 PLATE,BATTERY CASE 1
21007 21007-3705 REGULATOR-ASSY 2
21066 21066-3706 RELAY-SOLENOID 2
21121 21121-3702 COIL-IGNITION 4
21130 21130-3774 ALTERNATOR-ASSY 1
21175 21175-3721 SENSOR,WATER TEMP 2
23016 23016-0597 LAMP-ASSY,INDICATOR 1
23026 23026-0030 LENS,WARNING 1
23026A 23026-0031 LENS,FUEL 1
26011 26011-0955 WIRE-LEAD,RELAY 1
26011A 26011-0956 WIRE-LEAD,BATTERY(-) 1
26011B 26011-0957 WIRE-LEAD,BATTERY(+) 1
26012 26012-0787 BATTERY,YTX20L-BS,12V 18AH 1
26012A 26012-0814 BATTERY,YTX20L-BS,12V 18AH (JPN) 1
26012B 26012-0839 BATTERY,YTX20L-BS,12V 18AH (ALT) 1
26012C 26012-0866 BATTERY,FTX20L-BS,12V 18AH (ALT) 1
26012D 26012-0867 BATTERY,FTX20L-BS,12V 18AH (ALT) 1
26012E 26012-0868 BATTERY,ETX20L-BS,12V 18AH (ALT) 1
26012F 26012-0869 BATTERY,ETX20L-BS,12V 18AH (ALT) 1
26012G 26012-0870 BATTERY,LTZ10S,12V 8.6AH (ALT) 1
26012H 26012-0871 BATTERY,LTZ10S,12V 8.6AH (ALT) 1
26012J 26012-0872 BATTERY,HTZ10S,12V 8.6AH (ALT) 1
27008 27008-3770 KEY,MAGNETIC SW,#3001 1
27008A 27008-3771 KEY,MAGNETIC SW,#3002 AR
27008B 27008-3772 KEY,MAGNETIC SW,#3003 AR
27008C 27008-3773 KEY,MAGNETIC SW,#3004 AR
27008D 27008-3774 KEY,MAGNETIC SW,#3005 AR
27008E 27008-3775 KEY,MAGNETIC SW,#3006 AR
27008F 27008-3776 KEY,MAGNETIC SW,#3007 AR
27008G 27008-3777 KEY,MAGNETIC SW,#3008 AR
27008H 27008-3778 KEY,MAGNETIC SW,#3009 AR
27008J 27008-3779 KEY,MAGNETIC SW,#3010 AR
27048 27048-0029 SWITCH-ASSY,MAIN 1
32097 32097-3709 CASE-BATTERY 1
92015 92015-3848 NUT 1
92072 92072-3805 BAND,340X22 4
92161 92161-1388 DAMPER,BATTERY CASE 1
92200 92200-3736 WASHER 1
99999 99999-0311 BOLT NUT KIT 1
156 156R0635 BOLT-WP,6X35 4
